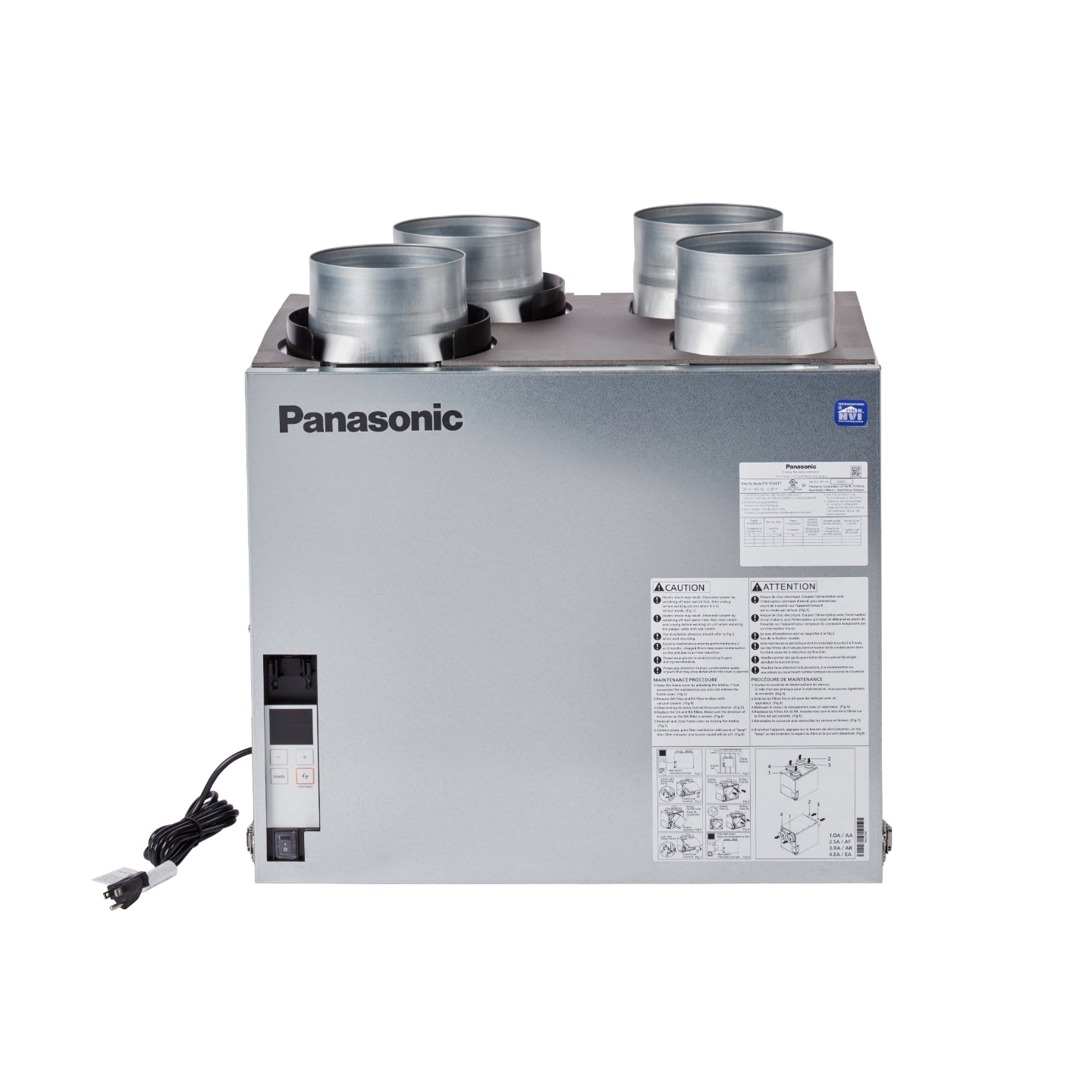

Panasonic FV-12VE1T

FV-12VE1T Product Description

Bring advanced indoor air quality to your projects with the industry’s most versatile energy recovery ventilator. The BalancedHome™ series offers unmatched flexibility with 8 models and 4 max adjustable CFM ranges, allowing you to choose the perfect solution for any home. Our unique design accommodates both top and side port installations, making it easier to integrate into your plans while meeting stringent code requirements.

Specifications:

Brand: Panasonic
Part Number: FV-12VE1T
UPC: 885170438545
Power Rating: 120V/60Hz, 2.4 Amps
CFM Range (Supply/Exhaust): 30–120 CFM (adjustable); Boost Capacity up to 120 CFM
Static Pressure: 0.4" w.g. (tested under CSA-C639)
Heating Efficiency:
Sensible Recovery: ≥75% at 36 CFM, 32°F [0°C]
Adjusted Sensible Recovery: ≥78% at 36 CFM, 32°F [0°C]
Cooling Efficiency:
Total Recovery: ≥68% at 36 CFM, 95°F [35°C]
Motors: Two (2) DC ECM brushless motors (continuous run, thermal fuse-protected)
Duct Diameter: ≥6"
Mounting: Ceiling or wall mount with pre-drilled brackets

Filters:

Included: MERV 8 [FV-FL0815VE1]
Replacements: MERV 13 [FV-FL1316VE1], washable MERV 6 [FV-FL0616VE1]
Filter Alerts: Visual/audible indicators after 90 days of runtime
Certifications: ASHRAE 62.2, Ontario Building Code, LEED, Indoor airPLUS, California Title 24, 2021 Washington State Residential Energy Code
Warranty: ECM Motors: 6 years | All Other Parts: 3 years
Operating Temperature: Freezing conditions supported via recirculation/exhaust modes
Power Consumption: ≤73W at 0.2" w.g., 121 CFM

Features:

Panasonic Hygroscopic Membrane Core: Transfers moisture/energy between indoor/outdoor air streams.
Mold-Resistant Core: Treated material to inhibit mold growth.
ASHRAE 62.2 Timing Function: Ensures code-compliant ventilation schedules.
Fault Indication Device (FID): CEC-certified alerts for maintenance/installation issues.
Adjustable CFM & Boost: Independent supply/exhaust settings with occupant-controlled boost.
LED Display: Speed selectors for supply/exhaust airflow.
Durable Housing: Galvanized corrosion-resistant steel body.
Easy Installation: Pre-drilled brackets and horizontal duct adapters included.
Low Maintenance: Washable/replaceable filters with automated reminders.
Energy Recovery: Reduces HVAC load by tempering incoming air.
Compliance Ready: Meets ASHRAE 62.2, LEED, and regional building codes.

Included Accessories:

Ceiling chain mounts and wall brackets
Vertical supply/return air adapters
Pre-installed MERV 8 filter
