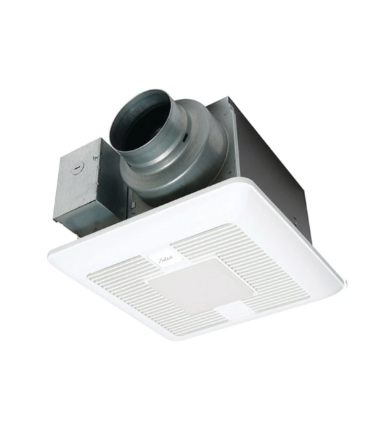

Panasonic FV-0511VKL2

FV-0511VKL2 Product Description

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements. First, the newly redesigned elegant grille incorporates a 10W dimmable LED chip panel with <1W LED night light for energy efficient illumination. Our improved single-hinged Flex-Z Fast™ bracket for more flexible and fast installation. Additionally, WhisperGreen Select® includes an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design.

Features:

Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
Pick-A-Flow® Airflow Selector (50-80-110 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
New! Elegant grille with integrated 10W dimmable LED chip panel with <1W LED night light; JA-8 compliant for CA Tittle 24
New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
New! Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy installation

Specifications:

Model number:FV-0511VKL2
Fan Type:Fan/Light - LED
Advanced Features:Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology, Dimmable LED Light
Air Volume Supply (CFM):@0.1= 50, 80, 110 @0.25= 50, 80, 110 @0.375= 50, 78, 103
Noise (Sones):@0.1"SP (50,80,110 CFM) = <0.3, <0.3, 0.4 @0.25"SP(50,80,110 CFM) = 0.4, 0.5, 0.9
Power Consumption (Watts):50 CFM=3.2, 80=5.3, 110=10.5
Energy Efficiency (CFM/Watt):50 CFM=15.7, 80=15.3, 110=10.5
Current (Amps):50 CFM=0.04, 80=0.06, 110=0.11
Power Rating (V/Hz):120/60
Motor Type (AC/DC):DC (ECM)
ENERGY STAR® Certified:Yes
Other Approved Codes and Standards:ASHRAE 62.2, LEED, CA T-24, CALGreen
Duct Diameter:4 inch
Mounting Options:Horizontal
Warranty:6 years ECM Motor, 3 years all other parts
Industry:Residential, Light Commercial
Radiation Damper Available:Yes, PC-RD05C5
UL Listed for Tub/Shower Enclosure when GFCI Protected:Yes
Master Carton Gross Weight (lbs.):12.40 (1 unit)
Master Carton Dimensions (HxWxD):11.85 x 14.17 x 16.73
