Orbit SSB-MB5 KO Ends = (10) - CKO , KO Bottom = (5) - CKO, KO Sides = (4) - CKO , CU. Inch = 116.1 Preassembled Simple Support Bracket With 3-1/2” Deep Multigang Masonry Box Up To 6-gang, Box Depth Adjustable From 5/8” To 1-1/2”

2 sold in last 8 hours
Orbit

SSB-MB5

$35.32
$35.32
customers are viewing this product

Orbit SSB-MB5

SSB-MB5 Product Description

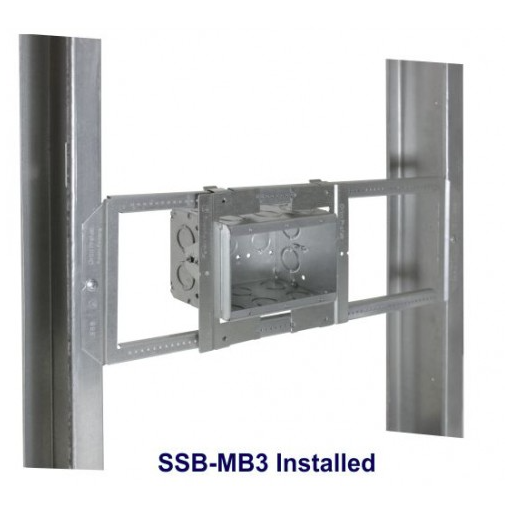

Orbit’s SSB-MB Series is the fastest and most versatile method to mount 3-1/2” deep Masonry Boxes between stud cavities. The SSB-MB is a preassembled Simple Support Bracket with three to six gang deep Masonry Box installed. The box depth is set at 5/8”, but easily adjustable to 1-1/2” via the outside adjustment screws. With 6-way adjustability, the SSB-MB series will ensure a flush finish every time.

Features:

- Simple Support Bracket adjusts from 15" to 25"
- Maintains rigidity when fully extended, eliminating need for back support
- Ships preassembled with box depth set at 5/8”, and adjustable up to 1-1/2”
- Guided-slots on each side allow the box depth to be easily adjusted by simply loosening the screws
- Built-In Adapter allows Masonry Box be moved along Simple Support Bracket until setting in final position with a tek screw
- All Knockouts are Concentric 1/2" & 3/4"

Specifications:

Material Sheet Steel
Color Galvanized

About Orbit:

Orbit Industries, Inc. is a leading manufacturer of electrical products catering to the wholesale distribution market. Orbit’s headquarters is conveniently located in Los Angeles, California. Since its inception, Orbit has expanded on the philosophy of delivering quality products with quality service.
