Orbit SSB-5S-MKO Preassembled Ssb-t5 With Uma And 5s Deep Box With Mko And 10” Ground Pigtail

2 sold in last 8 hours
Orbit

SSB-5S-MKO

$12.97
$12.97
customers are viewing this product

Orbit SSB-5S-MKO

SSB-5S-MKO Product Description

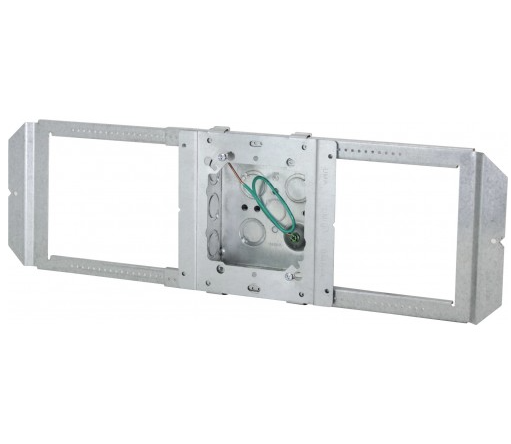

Orbit's Preassembled SSB-T5 with UMA and 4-11/16" (5S) Box with Multi-KOs is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. The SSB-5S-MKO bracket component adjusts from 15” to 25” with UMA attached to bracket. Includes 4-11/16” square 2-1/8” deep box with 3/4” to 1/2” eccentric knockouts, 1/2” knockouts, and preinstalled 10” pigtail. Patented. UL Listed.

Features:

- SSB-T5 bracket adjusts from 15" to 25"
- Rigidity eliminates need for far-side back support
- Includes 4-11/16” square 2-1/8” deep box with 1/2" KOs & 3/4” to 1/2” MKOs
- Includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail
- Snap-on UMA adapter can be removed and installed quickly without tools
- Slide 4-11/16” box to critical position - lock in place with one Tek screw
- Horizontal pin holes provide quick starting point for screws
- Two additional flat screw for mounting the box on UMA bracket
- Two pre-raised #8-32 screws are ready for taking any ring or cover
- Compatible with Orbit’s UL Adjustable Rings
- Optional BMCS Series provides built-in cable/conduit support
- Add LVSB Series Rings for low voltage applications that require no back-box
- Ships preassembled, reducing installation time

Specifications:

Material Sheet Steel
Color Galvanized
Sides KOs (2) - 1/2", (10) - MKO
Bottom KOs (2) - 1/2", (2) - MKO

About Orbit:

Orbit Industries, Inc. is a leading manufacturer of electrical products catering to the wholesale distribution market. Orbit’s headquarters is conveniently located in Los Angeles, California. Since its inception, Orbit has expanded on the philosophy of delivering quality products with quality service.
