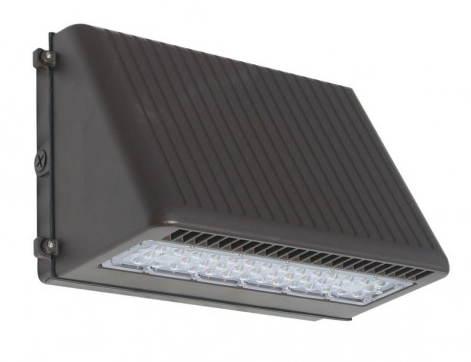

Orbit LWP3-80W-CW

LWP3-80W-CW Product Description

The LWP3 is an outdoor full cutoff LED wall pack equivalent to 250W pulse start metal halide (PSMH). The LWP3 Series provides highly effective illumination for outdoor hotels, garages, warehouses, public spaces, schools and universities, and hospitals. The LWP3 Series LED wallpack housing is constructed of die-cast aluminum and features a ribbed forward housing for superior heat dissipation. The Type III polycarbonate lens is fully gasketed for weathertight protection and produces a filling 40° light flow forward of the fixture. A 120V or 277V Photocell is optional. DLC 5.1 Premium Listed. UL Listed for Wet Locations.

Specifications:

Voltage:    120~277V
Power Factor:    > 0.9
Distribution Type:    TYPE III
Housing:    Die Cast Aluminum
Finish:    UV Resistant Bronze Powder Coat Finish
Lens Material:    High Light Transmittance Polycarbonate Lens with Weatherproof Gasket
Ambient Operating Temp:    -40°C / -40°F to 40°C / 104°F
Mount:    Wall Mount
UL listed for Wet Location    E335594
Life Hours:    50,000
Warranty:    5 Year Limited Warranty
Beam Angle:    75° x 105°
Photocell Optional:    PC-1F or PC-1F-277
Dimmable:    0-10V/PWM
Dimensions: (A) 9-1/4" x (B) 14-1/3" x (C) 8-1/16"
