Orbit LVBS-4-275 Preassembled UMA-LVBS with 4SDB-MKO-PT-10 and 42075
LVBS-4-275
Orbit LVBS-4-275
LVBS-4-275 Product Description

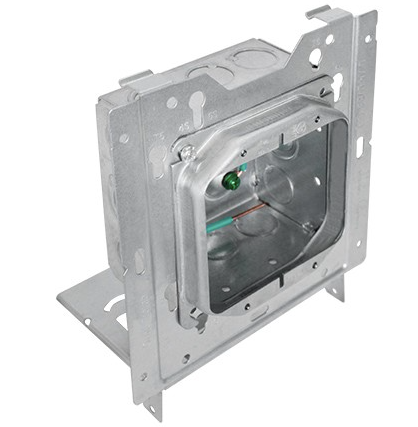

Orbit’s Preassembled UMA-LVBS with Square Box and Device Ring is a ready-to-install solution for common switch and receptacle rough-ins. LVBS Series can be deployed on the job site with little to no assembly required, saving nearly a minute per box. LVBS assemblies mount direct to open or closed sides of a wall stud, with integrated back support for 2-1/2" and 3-1/2" stud depths (extend to 6” with FS-456-EXT). Mount assembly between wall studs or ceiling joists with SSB-T5. 2-1/8” Deep Square Box includes 10” grounding pigtail. Select models available with 1-gang and 2-gang device rings, and/or BMCS-CJ6 cable support.
Specifications:
Category: SQUARE BOX
UPC: 835243027282
Brand: Orbit
Manufacturer: Orbit Industries
Part Number: LVBS-4-275
Material Sheet Steel
Color Galvanized
Standard Boxes:
KO Sides (8) - 1/2", (4) - MKO
KO Bottom (2) - 1/2", (2) - MKO
MC Cable Boxes:
KO Sides (4) - 1/2", (2) - MKO, (4) - Loom
KO Bottom (1) - 1/2"
