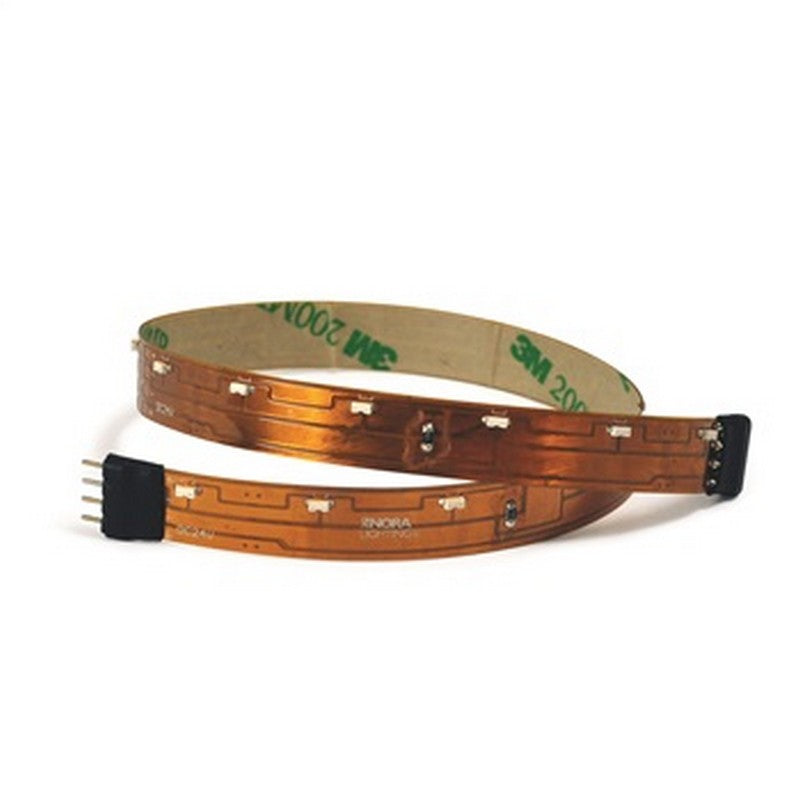

Nora Lighting NUTP9-LED27/12

NUTP9-LED27/12 Product Description

24V Side-Lit LED Tape has the same performance features as the standard tape light, but instead of project the light straight, the light is projected to the side, parallel to the mounting surface of the tape. For example, when mounted under a cabinet in a horizontal position, the light projects sideways toward the back splash with minimal LED image on the counter top. IP44
rated, the tape light can be used outdoors when not exposed to direct water spray.

FEATURES :

. Available in 16’ roll, 12” section, and 4” section
· 70 lumens per foot
· Separable every 12”, easily disconnected and connected without soldering
· Field cuttable every 4” or 6 LEDs
· Easy to install; pre-applied 3M™ tape or 15 acrylic mounting clips (included with roll)
· Single color illumination in 2700K or 3000K
· No soldering or additional wiring is required

SPECIFICATIONS :

Construction:
The tape can be cut every 4" at marked intervals, cutting does not effect circuit. LED Tape Light is also separable every 12”, simply separate pieces as this eliminates soldering when using partial rolls.

Mounting:
Each Tape Light includes pre-applied 3M™ adhesive tape for simple installation. Optional channels and clear acrylic clips are available.

LIMITATIONS
· Not rated or warranted for enclosed applications
· Tape light and most accessories are not rated for in-wall installation (NATL-W16-2 is rated for in-wall installations)
· Do not install in where LED chips are exposed to direct sunlight, as damage to the phosphor will occur

ELECTRICAL
Input Voltage:
24V

Lumens / Wattage:
70lm / 1.5W per foot

Color Temperature:
2700K or 3000K

CRI:
80 CRI

Operating Temp.:
-25ºC to 45ºC

Dimming:
Dimmable with Dimmable LED Driver

Maximum Run Length:
64'

LABELS AND LISTINGS
· cULus Listed for Damp Location
· 3-Year Limited Warranty
