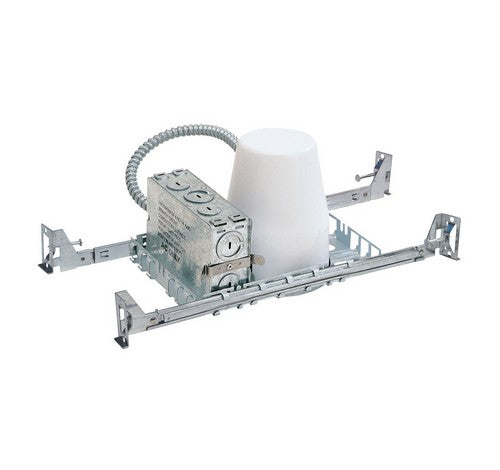

Nora Lighting NSL-401AT/10 4" Air-Tight Line Voltage MR16 GU10 New Construction Housing

2 sold in last 8 hours

NSL-401AT/10

$26.10
$26.10
customers are viewing this product

NORA Lighting NSL-401AT/10

NSL-401AT/10 Product Description


Line Voltage MR16 GU10 housing provides the crisp reflectance of MR16 light sources while operating on straight line voltage without transformers. New GU10 lamps are shielded and feature solid, heavy duty turn-and-lock contacts. Nora’s GU10 fixture is quick to install, operates on standard incandescent dimming controls, and accepts a wide variety of high quality, adjustable finishing trims. Also available as remodel.

SPECIFICATIONS :

Light Source : Line Voltage
Construction Type : Air-Tight, Remodel, Non-IC
Aperture Size : 4"
Lamp : 50W MR16 GU10 (not included)

Plaster Frame
0.040 steel frame with integral bar hanger brackets. Brackets can accommodate longer 27" accessory flat bar hangers. Brackets run along all sides of frame to allow bar hangers to be run parallel or perpendicular to junction box.

Housing
0.035 white baked enamel one-piece drawn steel. Adjustable for ceiling thickness from 5/8" to 1-3/8".

Clearance
Non-IC housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.

Air Flow Restriction
Air tight (AT) housings have factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Socket
Line voltage GU10 socket.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.

Junction Box
Prewired 25 cubic inch 0.060" thick galvanized steel, with seven 1/2" knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

Lamp
50W 120V MR16 GU10 (MR16 GU10 with 40º beam spread included)

ELECTRICAL
Wiring
Standard flex whip carries wire lead from junction box into housing. Wire leads extend from housing and thermal device to 4" below housing, terminating at GU10 MR16 socket.
Thermal Protector
Standard UL thermal protector rated for 90ºC (194ºF) is affixed to side wall surface of housing.

Labels and Listings
cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements
Washington State Approved
