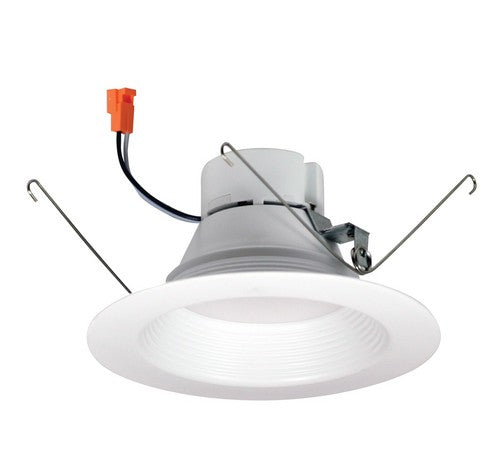

NORA Lighting NOX-563235WW 5" or 6" Onyx Round LED Baffle White Finish 750lm & 12W 3500K
NOX-563235WW
NORA Lighting NOX-563235WW
NOX-563235WW Product Description
Cobalt retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit click luminaries provide 750 lumen output at 90+ CRI. The Cobalt series integrates a Cree® COB family of LED arrays, giving bright spectacular light output and low power consumption.
FEATURES:
750lm / 12W LED output
2700K, 3000K, 3500K or 4000K @ 90+ CRI
CREE® COB LED or Comfort Dim technology
Integral dimmable driver
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
5-year limited warranty
Energy Star certified
cULus classified for wet locations
SPECIFICATIONS:
Trim: UTM thermal management features an integral driver, large heat sink and the latest Cree COB technology. The patented “Click” system allows the aluminum spun trims to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Electrical
Input Voltage: 120V or 120V-277V, must specify Lumens / Wattage: 750lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
CRI: 90+CRI
Operating Temp.: 0˚C to 45˚C ambient temperature
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 1700K on a gradual, even curve.
Dimming: Available in Triac/ELV/0-10V
ACCESSORIES
NLCBC-4EYELID: Round eyelid used to convert round reflector or baffle to half moon wall wash trim.
NLCBC-4OR: Round oversize ring used to cover ceiling cut-outs up to 6".
Labels and listings
cULus classified for Wet Locations
ENERGY STAR certified (WW finish only)
5-Year Limited Warranty
Can be used to comply with 2016 Title 24 – part 6 High Efficacy LED light source requirements
