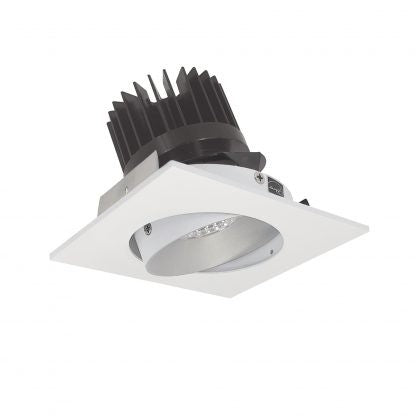

Nora Lighting NIO-4SC30XHZMPW/HL 4 Inch Iolite Square Adjustable Cone Reflector
NIO-4SC30XHZMPW/HL
Nora Lighting NIO-4SC30XHZMPW/HL
NIO-4SC30XHZMPW/HL Product Description
4″ Iolite reflectors can be specified for use in new construction or remodel applications. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.FEATURES :
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Cree® LED COB or Comfort Dim Technology
· Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction:
Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting:
Reflector includes friction blades to mount securely to housing.
OPTICS
800-1000lm:
Each reflector includes field changeable optics (25° spot, 38° narrow flood and 60° flood - preinstalled). Premium 15° and 25° TIR optics are also available.
1500-2500lm:
Each reflector includes field changeable TIR optics (39° spot, 51° narrow flood - preinstalled and 71° flood).
ELECTRICAL
Lumens / Wattage:
800lm / 14W, 1000lm / 14W, 1500lm / 20W, 2000lm / 24W, 2500lm / 28W
Color Temperature:
2700K, 3000K, 3500K, 4000K, 5000K
CRI:
90+CRI
Operating Temp.:
Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming:
Specified by housing
