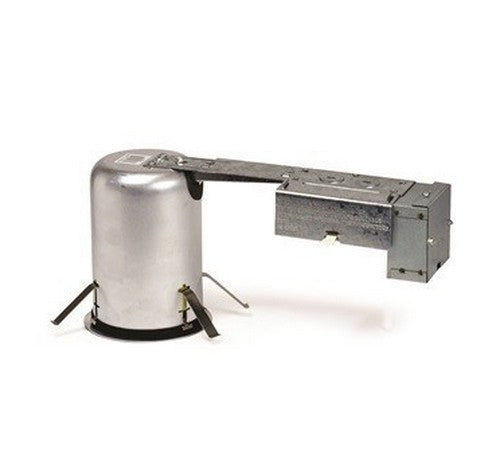

NORA Lighting NHRIOIC-48LE4 4" Iolite, Dedicated IC Air-Tight Remodel Housing
2
sold in last
8
hours
NHRIOIC-48LE4
$91.71
$72.45
customers are viewing this product
PRODUCT DESCRIPTION
4″ Dedicated Iolite remodel housing for use in insulated ceilings; can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.
FEATURES:
Wattage: 14W
Voltage: 120V or 120-277V
Power Factor: >0.90
Operating Temp. : 104ºF (40ºC) max. ambient temp.
IC rated for direct contact with insulation**
Quick connect provided for electrical connection to the
LED reflector
ASTM E283 for Air-Tight
Dimming down to 5%
SPECIFICATIONS:
Housing: 0.030 steel can connects to integrated 0.040 steel structural arm with J-box and driver compartment.
Integral spring brackets provided.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Mounting: Four high-tension tempered steel springs secure remodel housing from 1/4" (min) to 5/8" (max) thick ceiling. Hole cutout template provided for convenience.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap-on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
FEATURES:
Wattage: 14W
Voltage: 120V or 120-277V
Power Factor: >0.90
Operating Temp. : 104ºF (40ºC) max. ambient temp.
IC rated for direct contact with insulation**
Quick connect provided for electrical connection to the
LED reflector
ASTM E283 for Air-Tight
Dimming down to 5%
SPECIFICATIONS:
Housing: 0.030 steel can connects to integrated 0.040 steel structural arm with J-box and driver compartment.
Integral spring brackets provided.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Mounting: Four high-tension tempered steel springs secure remodel housing from 1/4" (min) to 5/8" (max) thick ceiling. Hole cutout template provided for convenience.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap-on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
