Nora Lighting NHIOICD-420LE4 4 Inch Iolite High Lumen IC Air-Tight New Construction Housing 2000lm
2
sold in last
8
hours
NHIOICD-420LE4
$127.71
$100.89
customers are viewing this product
PRODUCT DESCRIPTION
Nora Lighting NHIOICD-420LE4

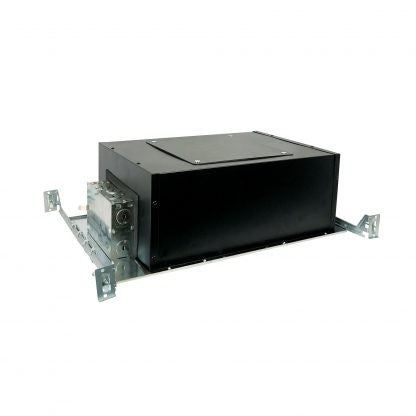

NHIOICD-420LE4 Product Description
Iolite dedicated LED New Construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.FEATURES :
· IC rated for direct contact with insulation**· Quick connect provided for electrical connection to the LED reflector
· ASTM E283 for Air-Tight
· Patented driver assembly
SPECIFICATION :
Housing:0.040” Aluminum housing with patented driver assembly, allows for driver to slide out without tools. Housing can be installed in 1/2” ceiling thickness, an extension collar is available for ceiling thickness up to 2”, must specify NIO-4EXTC2. Housing allows for access through top plate, for driver maintenance/installation above ceiling.
Air Flow Restriction:
Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance**:
“IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers:
Two 13-3/4” to 24-1/2” adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box:
Pre-wired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required.
About Nora Lighting:
After stepping into the lighting game just a little over 20 years ago, Nora lighting has sprinted its way to the top of light fixture suppliers. With a team of the most hip design experts and engineering technologies Nora lights can add a modern, yet dependable edge to your home, job, or college dorm. Nora track lighting and recessed lighting are amongst the best available. So why not play it stylish and smart and go with Nora lighting?Have Questions?Ask a BuyRite Electric Expert
