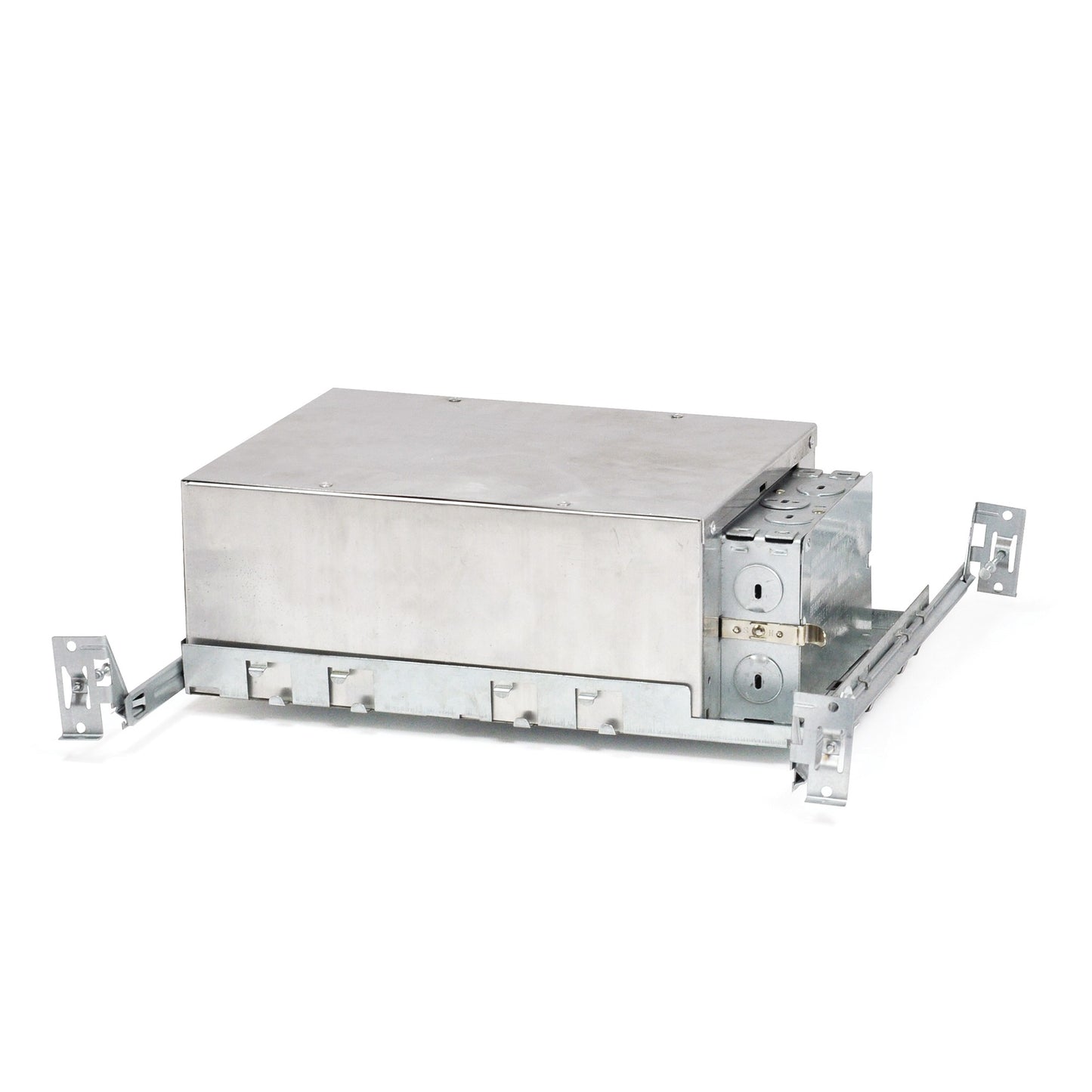

Nora Lighting NHIOICD-28LE4/PEM 2 Inch Iolite Dedicated New Construction IC Air-Tight Housing 800-1000lm

2 sold in last 8 hours

NHIOICD-28LE4/PEM

$113.40 $89.59
$89.59
customers are viewing this product

Nora Lighting NHIOICD-28LE4/PEM

NHIOICD-28LE4/PEM Product Description

Iolite dedicated LED New Construction housing features aluminum construction. Driver available in Triac and 0-10V dimming and 120/277V input.

FEATURES :

· IC rated for direct contact with insulation**
· Quick connect provided for electrical connection to the LED reflector
· ASTM E283 for Air-Tight
· Patented driver assembly

SPECIFICATION :

Housing:
0.040” Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Housing can be installed in 1/2” ceiling thickness, an extension collar is available for ceiling thickness up to 2”, must specify NIO-2EXTC2.

Air Flow Restriction:
Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.

Clearance**: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.

Bar Hangers:
Two 13-3/4” to 24-1/2” adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.

Junction Box:
Pre-wired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required.

About Nora Lighting:

After stepping into the lighting game just a little over 20 years ago, Nora lighting has sprinted its way to the top of light fixture suppliers. With a team of the most hip design experts and engineering technologies Nora lights can add a modern, yet dependable edge to your home, job, or college dorm. Nora track lighting and recessed lighting are amongst the best available. So why not play it stylish and smart and go with Nora lighting?

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
