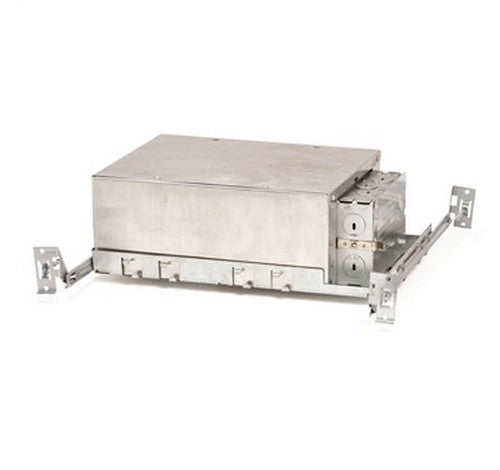

NORA Lighting NHIOICD-16LE3

NHIOICD-16LE3 Product Description

New construction housing for use in insulated** ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.

FEATURES:

IC rated for direct contact with insulation
Quick connect provided for electrical connection to the LED reflector
ASTM E283 for Air-Tight
Dimming down to 5%
Patented driver assembly

SPECIFICATIONS:

Housing: 0.040” Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Extension collar is available for ceiling thickness up to 2”, must specify NIO-1EXTC2.

Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.

Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows for easy installation in a suspended ceiling.

Junction Box: Pre-wired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required.

ELECTRICAL
Voltage: 120V or 120-277V (must specify)
Power Factor: >0.90
Operating Temp.: 104˚F (40˚C) max. ambient temp.
Wattage: 9W (LE3) or 10W (LE4)
Dimming: Triac / ELV or 0-10V Dimming (must specify)

Emergency: Housing can be wired with connections
for emergency battery installation. Requires top access.
Specify NEPK-BSL17C-C2U for battery with remote test
switch.

LABELS AND LISTINGS
CULUS Listed for Damp Location
CULUS Listed for Wet Location (w/designated reflectors)
5-Year Limited Warranty
RoHS compliant
Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight Requirements
