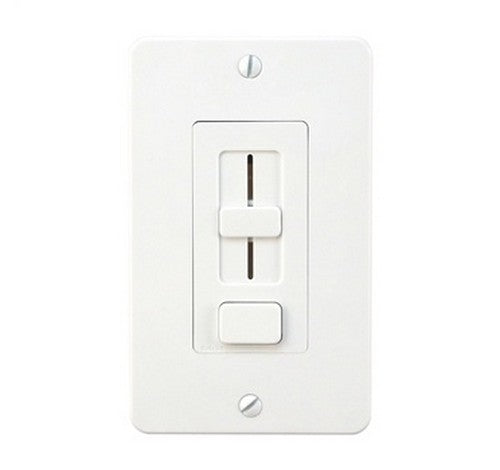

Nora Lighting NATL-SWEX100/24A Dimmer Plus Driver Switch 120V

NEXUS simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. NEXUS mounts in a standard in-wall switch box, accepts 120VAC and converts to 24V.

FEATURES :

First LED Driver + In-Wall Dimmer Switch in one unit.
Simplifies LED installation by eliminating compatibility issues between driver and dimmer.
Fits in a standard recessed electrical box.
100% – 5% smooth dimming.
No minimum load.
Single Pole preset dimmer with on/off push switch.
Adjustable voltage output dial to address voltage drop.
Includes voltage barrier partition to install high and low voltage circuit in same switch box.
No derating required when ganging units.
Power failure memory: If power is interrupted, NEXUS® will return to setting prior to interruption.
Includes slide dimmer/on-off plate in white. Decora switch plate not included.
cULus Listed (US & Canada) Low Voltage Lighting System #E472619.

SPECIFICATIONS :

Electrical
Input Voltage: 120VAC, 50/60Hz
Output Voltage: 24V
Power Factor: >0.9 @ 120VAC 60Hz max load
Total Harmonic Distortion (THD): ≤20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
Stand-by Power: ≤0.5W
Efficiency: >91% @ 120 VAC max load
In-Rush Current: Meets NEMA-410 requirement at any nominal input full sine wave voltage and maximum load at 25ºC
Leakage Current: <500 µA @ 120 VAC
Surge Transient: Tested to meet transient defined in IEC 6100-4-4; level 3 & IEC 6100-4-5, level 3
Dimming: Output voltage is adjustable via sliding lever Voltage Adjustment Dial: Increases output +1V to compensate for voltage drop from control to luminaire
Startup Time: The main supply output voltages remain within the regulation limit of +/- 3% Protections: Short circuit, thermal runway, and over voltage
Output Ripple Current: ≤20% of the rated output current @ 120VAC max load.

Labels and listings
cULus Listed (US & Canada) Low Voltage, Wall Recessed Power Units. #E472619
FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules
RoHS Certified
CE Certified
Conforms to NEC Code 725.136 (See Mechanical Diagram): Class 1 and Class 2 circuit in same enclosure must be separated by a barrier (partition) unless Class 2 circuit conductors are installed in accordance with 725.41 Class 1 Circuits.
5-year limited warranty from the date of shipment. This warranty does not include the additional accessories referenced in this specification sheet.
