MaxLite NPP-PL20A

NPP-PL20A Product Description

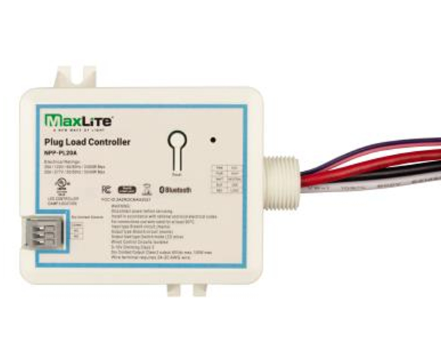

c-Max Plus Load Controller (NPP-PL20A) is a new addition to the c-Max family with all the features you expect from a BLE Mesh Network. The NPP-PL20A helps eliminate “Phantom Voltage” caused by PC’s, Phone chargers, and other devices being left powered on. The NPP-PL20A is rated for a full 20A load and can be installed at the main panel within Bluetooth range or in the area it is controlling the outlets. The device meets ASHRAE 90.1 and Title 24, Part 6 energy code for new construction. It also features 3A rated Dry Contacts for controlling HVAC dampers.

Features:

 Easy commissioning with c-Max App (available in iOS and
Android)
• Local Bluetooth network with no gateway needed
• Ability to be paired with other c-Max Network devices such
as sensors, network nodes based on desired application
functionality
• 20A plug load control
• Dry Contact Output: 3A max pass through current
• Plenum rated UL2043
• Individual addressability and/or grouping
• Time clock scheduling for individual lights, groups, or scenes
• NPP-PL20A can be used as a standalone, or grouped with
other c-Max Controls Ready Luminaires
• 5 Year Warranty

Specifications:

MODEL NUMBER NPP-PL20A
OPERATING VOLTAGE 120-277V
OPERATING FREQUENCY 50/60Hz
MAX PLUG LOAD 20A
LOAD SWITCHING Zero-cross Hybrid Switching
RADIO FREQUENCY 2.4GHz ± 75MHz
WIRELESS STANDARD BLE MESH
PROGRAMMING c-Max Mobile App (iOS and Android)
CYBERSECURITY UL1376 Gold Rating
ENCRYPTION AES 128-bit
MESH RANGE 100ft node-to-node and 50ft node-to-device (commissioning)
SAFETY cULus Listed E511069 light-emitting-diode controllers
FCC FCC ID: 2AZRDCMAX2021
BQB D055367
OPERATING TEMPERATURE -22°F to 130°F / -30°C to 55°C
ENVIRONMENT Indoor Use Only
