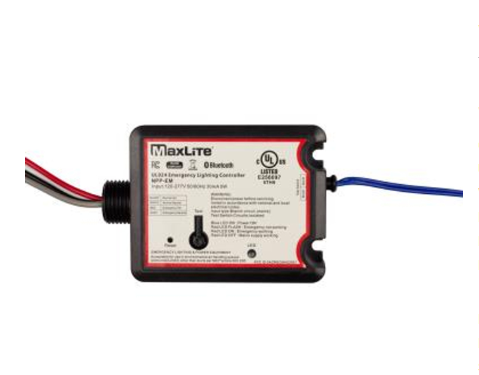

MaxLite NPP-EM

NPP-EM Product Description

NPP-EM is designed to comply with UL924 to bypass c-Max 0-10V dimming during a power outage when using a generator or inverter. The NPP-EM requires no load and can send wireless commands during power interruptions to ensure emergency lights stay on. The device is capable of being programmed for scenes to meet UL required light levels during a power loss. It has two test button options for manual testing. One on the unit and one with supplied external switch.

Features:

• Automatically overrides c-Max Network controls when normal
power is interrupted and backup power from generator/
inverter is detected
• Designed to comply with UL924 to bypass 0-10V dimming
during a power outage
• Wirelessly sends emergency lighting commands during power
interruption to ensure emergency lights stay on
• Emergency mode can be predefined as lighting scene or
dimming level for specific group of lights
• Wireless capability - No load requirement
• Communicates only with c-Max Network controls
• Two test button options provided which allows user to
manually test emergency operation
• LED indicators for diagnostics
• NPP-EM complies with UL2043 Plenum Ratings
• Easy commissioning with c-Max App (Available in iOS and
Android)
• 5 Year Warranty

Specifications:

MODEL NUMBER NPP-EM
OPERATING VOLTAGE 120-277V
OPERATING FREQUENCY 50/60Hz
OPERATING CURRENT 30mA
INPUT POWER 5W
RADIO FREQUENCY 2.4GHz ± 75MHz
WIRELESS STANDARD BLE MESH
PROGRAMMING c-Max Mobile App (iOS and Android)
CYBERSECURITY UL1376 Gold Rating
ENCRYPTION AES 128-bit
MESH RANGE 100ft node-to-node and 50ft node-to-device (Commissioning)
SAFETY cULus Listed E256097 Emergency Lighting and Power Equipment
FCC FCC ID: 2AZRDCMAX2021
BQB D055367
OPERATING TEMPERATURE -22°F to 120°F / -30°C to 50°C
ENVIRONMENT Indoor Use Only
WARRANTY 5 years
