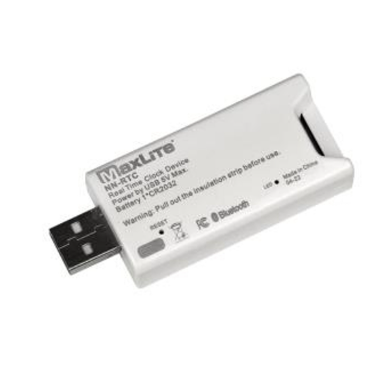

MaxLite NN-RTC

NN-RTC Product Description

c-Max network lighting controls features a patented plug-and-play interface that allows for easy field installation of low voltage nodes and sensors to create an affordable luminaire lighting control solution. Sensors integrated with occupancy, daylight harvesting, and other control capabilities help achieve energy code compliance.

The Real Time Clock (NN-RTC) device enables the bluetooth mesh network to get synchronized every 10 minutes with real local time. As a result, the schedules set up within the zone can be executed at the set times after a power outage

Features:

• Easy commissioning via c-Max App (IOS and Android)
• At least 1 NN-RTC device per zone
• Can be utilized as a bridge connection between nodes
• Powered by plugging into any USB-A port
• 10-year Internal CR1220 battery to maintain the zone’s real-time
schedule after power outages
• 5 Year Warranty

Specifications:

OPERATING VOLTAGE Powered by USB-A 5V charging port
FLAME RATING UL 94 V-0
CONTROL TECHNOLOGY Bluetooth
WIRELESS STANDARD BLE 4.2MESH IEEE 802.15.1
WIRELESS FREQUENCY 2.4GHz
PROGRAMMING c-Max Mobile App (IOS and Android)
CYBERSECURITY UL1376 Gold Rating
ENCRYPTION AES 128-bit
MESH RANGE 100ft node-to-node and 50ft node-to-device
(Commissioning)
FCC FCC ID: 2AZRDCMAX2021
OPERATING TEMPERATURE -40°F to 131°F / -40°C to 55°C
WARRANTY 5 years
COLOR White
WEIGHT TBD
