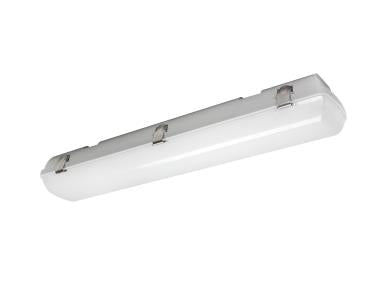

MaxLite LSV2U20WCSCR
LSV2U20WCSCR Product Description
A cost-effective vapor tight fixture with tremendous flexibility, the LSV Series is both wattage and CCT selectable, controls ready, and provides an emergency battery backup option. This durable, IP65 rated linear fixture with stainless steel clips is ideal for commercial and industrial environments where water, humidity, and dust may occur, including stairwells, parking garages, utility areas and agricultural applications
Features:
• CCT and Wattage selectable (9 possible combinations with each fixture)
• Controls Ready – can be paired with the new cMax controls nodes
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• L70 lumen maintenance of 100,000 hours
• Polycarbonate (PC) housing with stainless steel clips and lens hermetically sealed for IP65 rating
• ETL sanitation listed to NSF/ANSI2 standards
• On EM mode, the fixture CCT will be set to 5000K
• On EM mode, the fixture output a minimum of 700 lumens for 90
minutes, when fully charged
• Default setting for WCS models is set to lower wattage and 4000K
• Fixture may be surface mounted or pendant/rod mounted (accessories sold separately)
Specifications:
SKU: LSV2U20WCSCR
UPC: 767627008269
Brand MaxLite
Watts (W): 20/25/30
Voltage (V): 120-277
Delivered Lumens (lm): 2600/3250/3900
Efficacy (lm/W): 130
Color Rendering Index (CRI): ≥80
Color Temperature (K): 3500/4000/5000
Beam Angle: 130
Power Factor: 0.90
Min. Ambient Temp (°F): -40
Max. Ambient Temp (°F): 104
Size: 2 FT
Product Weight (lbs.): 3.08
Product Height (Inches): 3.50
Product Length (Inches): 24.80
Product Width (Inches): 5.00
L70 (Hours): 100000
Warranty (Years): 10
Dimming: 0 to 10V
About MaxLite:
MaxLite has been committed to providing energy-efficient lighting products since 1993. One of the first movers into LED technology in the industry, MaxLite offers a complete portfolio of quality certified LED lamps, indoor and outdoor LED luminaires, and a full line of its patented cMax Lighting Controls.
