MaxLite CN-MGMST

CN-MGMST Product Description

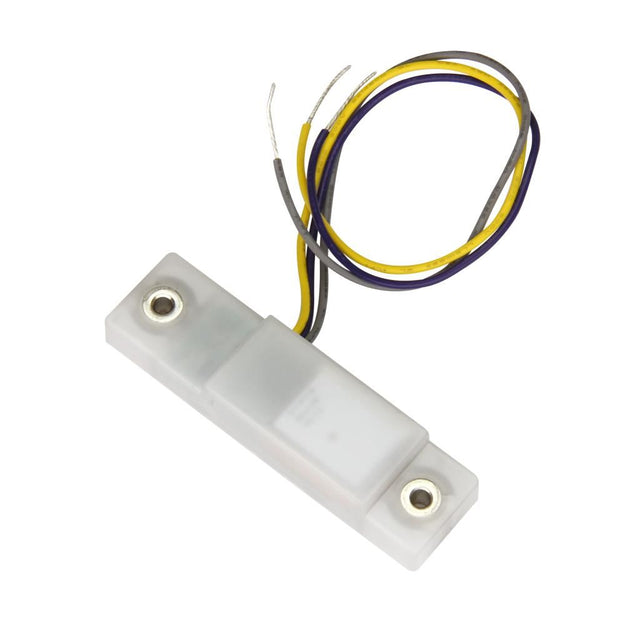

MaxLite 105891 Control Node Magnet Microwave Motion Sensor Translucent

Specifications:

Manufacturer: MaxLite
SKU: CN-MGMST
UPC: 767627011917
Operating Voltage: 12-20VDC
Operating Current: max 20mA
Sinking Current max 25mA
Sensor Technology Microwave: (5.8GHz)*
Control Output: 0-10V
Recommended Mounting Height: 8-15ft / 2.5-4.5M
Maximum Mounting Height: 20ft / 6M
Connector Interface: 24’ Flying leads
Commissioning Protocol: IR
Certification: cULus Listed E511069 (Damp Listed), California Title 20 Compliant, FCC Part 15 Subpart B Class A
Operating Temperature: -30°F to 130°F / -35°C to 55°C
Operating Humidity: 0-85% RH Non-Condensing
High Trim: 50%, 75%, 100%
Overall Dimensions: 2.84” x 0.77” x 0.41” / 72.1mm x 19.5mm x 10.5mm
Color: Translucent
Weight: 0.8oz/23g

About MaxLite:

MaxLite has been committed to providing energy-efficient lighting products since 1993. One of the first movers into LED technology in the industry, MaxLite offers a complete portfolio of quality certified LED lamps, indoor and outdoor LED luminaires, and a full line of its patented cMax Lighting Controls.
