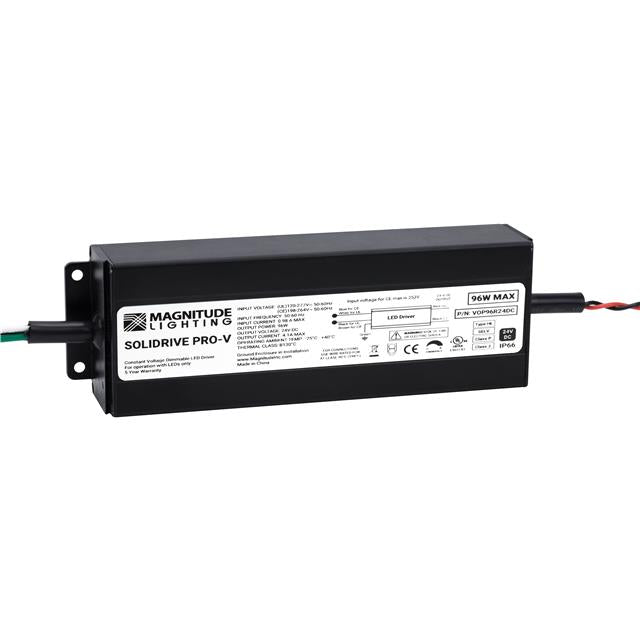

Magnitude Lighting VOP96L24DC

VOP96L24DC Product Description

The SoliDrive VOP96L24DC Magnitude Lighting LED Driver 24V 4.1A 96W Constant Voltage AC DC Converter IP66 120VAC-277VAC 12.10L x 2.36W x 1.40 H (307.34mm x 59.94mm x 35.6mm) Wire Leads.

Specifications:

Manufacturer: Magnitude Lighting
SKU: VOP96L24DC
Product Category :LED Drivers
Approval Agency :FCC, UL
Current - Output (Max) :4.1A
Dimming :ELV, MLV, TRIAC
Efficiency :84%
Features :OCP, OTP, OVP, SS
Number of Outputs :1
Operating Temperature :-40°C ~ 85°C
Power (Watts) :96 W
Product Status :Active
Ratings :IP66
Size / Dimension :12.10" L x 2.36" W x 1.40" H (307.34mm x 59.94mm x 35.6mm)
Standard Number :8750, 2043, CSA C22.2 NO. 250.13-14
Termination Style :Wire Leads
Topology :AC DC Converter
Type :Constant Voltage
Voltage - Input (Max) :277VAC
Voltage - Input (Min) :120VAC
Voltage - Isolation :-
Voltage - Output :24V

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
