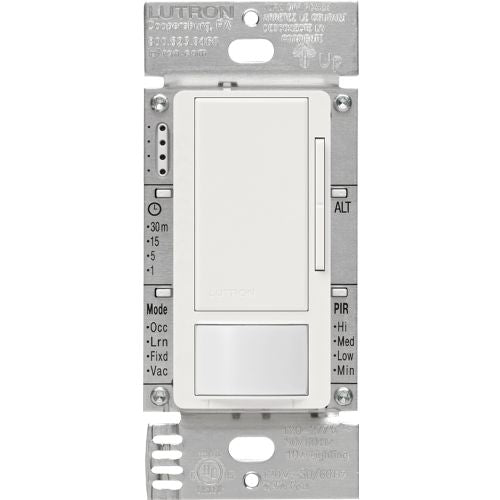

Lutron MS-Z101-SW
MS-Z101-SW Product Description
The Maestro® 0–10 V Dimmer Sensor combines a Maestro® 0–10 V Dimmer with an occupancy or vacancy Sensor. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Order your Lutron MS-Z101 0-10V vacancy dimmer sensor today or contact one of our certified lighting specialists for more information.Features:
Controls 0–10V electronic fluorescent ballasts or LED driver load typesPassive infrared motion detection with exclusive Lutron® XCTTM Technology for fine motion detection
Up to 30 ft × 30 ft
Adjustable timeout (1, 5, 15, or 30 minutes)
Adjustable sensitivity level: High, Med, Low, Min
Single pole and 3-way capability
Wall plate sold separately
Specifications:
Manufacturer: Lutron LightingManufacturer Part Number: MS-Z101-SW
Switch Type: Button
UPC: 784276099912
Amps: 8 Max
Input Voltage: 120-277V
Color: Snow White
Detection Zone: 180 Degrees
Sensor Coverage: 900 Sq Ft
Operating Temp: 104 F Max
