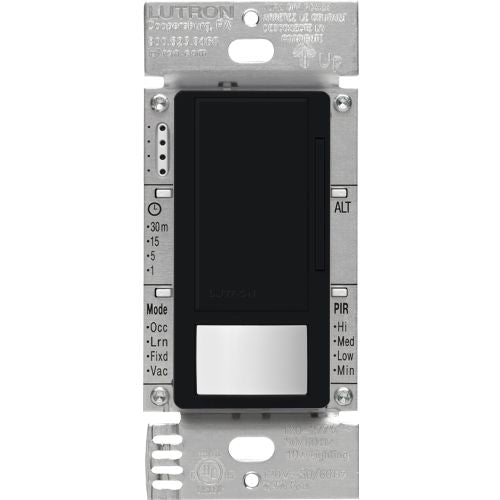

Lutron MS-Z101-MN

MS-Z101-MN Product Description

The Maestro® 0–10 V Dimmer Sensor combines a Maestro® 0–10 V Dimmer with an occupancy or vacancy Sensor. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Order your Lutron MS-Z101 0-10V vacancy dimmer sensor today or contact one of our certified lighting specialists for more information.

Features:

Controls 0–10V electronic fluorescent ballasts or LED driver load types
Passive infrared motion detection with exclusive Lutron® XCTTM Technology for fine motion detection
Up to 30 ft × 30 ft
Adjustable timeout (1, 5, 15, or 30 minutes)
Adjustable sensitivity level: High, Med, Low, Min
Single pole and 3-way capability
Wall plate sold separately

Specifications:

Manufacturer: Lutron Lighting
Manufacturer Part Number: MS-Z101-MN
Switch Type: Button
UPC: 784276100106
Amps: 8 Max
Input Voltage: 120-277V
Color: Midnight
Detection Zone: 180 Degrees
Sensor Coverage: 900 Sq Ft
Operating Temp: 104 F Max

About Lutron:

Lutron designs and manufactures automated light and shade controls for homes and commercial applications. Our story began in the late 1950s in Joel Spira’s makeshift lab in New York City. A young physicist fascinated by the aesthetic manipulation of light, Spira commandeered the spare bedroom in the apartment he shared with his wife, Ruth, and set out to invent a solid-state device that would enable people to vary the intensity of the lights in their homes. The result? The world’s first solid state dimmer-and the birth of the lighting control industry. Since then, Lutron has been busy innovating. We hold over 2,700 worldwide patents and were the first company to create a system of dimmer and motorized window shades for controlling both electric light and daylight.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
