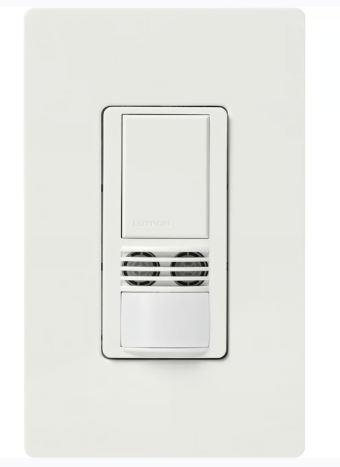

Lutron MS-A102-V-WH Maestro Dual Technology Ultrasonic and Passive Infrared Vacancy Sensor Switch for Single Circuit, White Finish

Lutron MS-A102-V-WH

MS-A102-V-WH Product Description

Lutron Maestro Dual Technology Ultrasonic and Passive Infrared Vacancy Sensor Switch for Single Circuit, White Finish.

Features:

XCT Technology for major, minor, fine, and very fine motion detection
180° sensor field-of-view
Tamper-resistant PIR lens
Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
Two Ambient Light Detect (ALD) options:
Learning ALD Mode:
Uses adaptive algorithm. Sensor learns user’s preferred light level over time.
Fixed ALD mode: Four selectable light level thresholds: Hi, Med, Low, Min
Single-circuit “Vacancy” models (MS-A102-V-XX, MS-B102-V-XX) available to meet Title 24 / Title 20 requirements for vacancy sensors.
Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
Sensitivity adjustment
PIR (Hi, Med, Low, Min)
Ultrasonic (Hi, Med, Low, Off)

Specifications:

Brand  Lutron
Model# MS-A102-V-WH
Sensor Type    Vacancy Sensor Switch
Number of Circuit    1
Neutral Wire Required    No
Operation    Single Pole
Voltage / Load Type / Maximum Load    120 - 277 V~ Lighting 6 A (incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent)
120 V~ Fan 4.4 A (1/6 HP)

About Lutron:

Lutron designs and manufactures automated light and shade controls for homes and commercial applications. Our story began in the late 1950s in Joel Spira’s makeshift lab in New York City. A young physicist fascinated by the aesthetic manipulation of light, Spira commandeered the spare bedroom in the apartment he shared with his wife, Ruth, and set out to invent a solid-state device that would enable people to vary the intensity of the lights in their homes. The result? The world’s first solid state dimmer-and the birth of the lighting control industry. Since then, Lutron has been busy innovating. We hold over 2,700 worldwide patents and were the first company to create a system of dimmer and motorized window shades for controlling both electric light and daylight.
