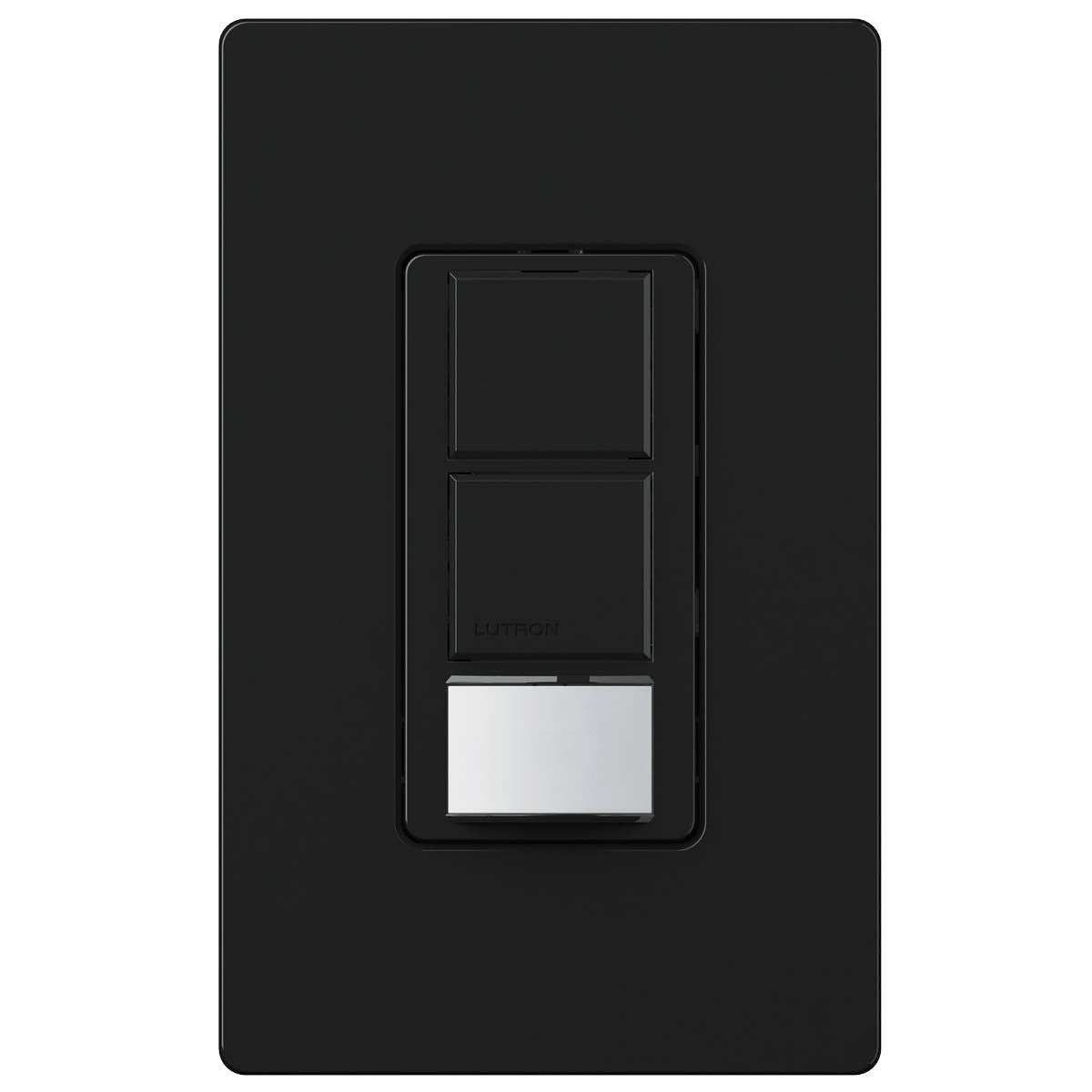

Lutron MS-PPS6-DDV-WH Maestro Dual-Circuit Switch with Occupancy / Partial-On Sensor

The Lutron® Maestro® Dual-Circuit Occupancy Sensing Switch combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either:
Control of two circuits
Bi-level control of two circuits, as required by certain energy codes (e.g., ASHRAE)

FEATURES:

Passive infrared sensor with exclusive Lutron® XCTTM
Technology for minor motion detection
180° sensor field-of-view
Tamper-resistant PIR lens
Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user’s preferred light level over time.
Occupancy version can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
Meets Title 24/Title 20 requirements for multi-level lighting. Partial-ON only (PPS6-DDV) version available to meet Title 24/Title 20 requirements for Partial-ON sensors.
Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
Sensitivity adjustment (High/Low)
Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
Switches fan loads at 120 V~.
Single-pole only.
