Lotus LED Lights L3G-SRT-WB-RS36-4C90
L3G-SRT-WB-RS36-4C90 Product Description

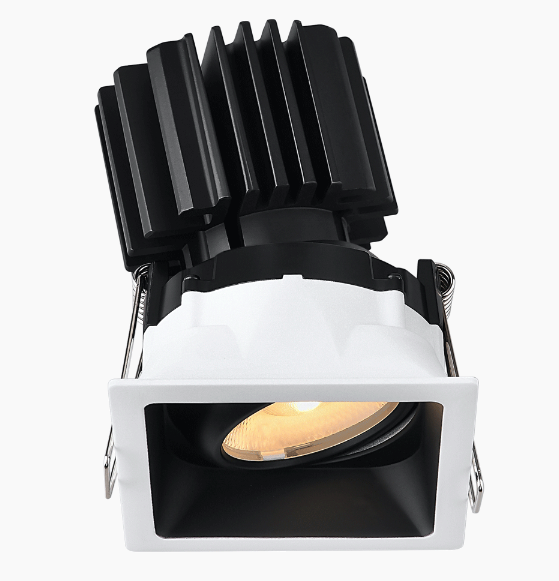

L3G-SRT-WB-RS36-4C90 is a high-quality 3" recessed square LED downlight from the Lotus LED Lights Tangra™ series, designed for refined architectural and accent lighting. It features a White / Black Duo trim paired with a 36° medium beam reflector with semi-frosted glass, providing smooth, controlled illumination with reduced glare and enhanced visual comfort.
This fixture utilizes Dim-to-Warm technology, transitioning seamlessly from 4000K to 2700K as it dims, while maintaining a CRI of 90 for accurate and natural color rendering. Built with a solid cast aluminum housing and precision-engineered optics, the L3G-SRT delivers reliable performance, efficiency, and long service life.
Specifications:
SKU: L3G-SRT-WB-RS36-4C90
Brand: Lotus LED Lights
Power: 11W / 15W user selectable with Lotus Tangra drivers
Color Temperature: 4CCT: 2,200 / 2,700 / 3,000 / 4,000K + DTW 3,500K to 2,700K
Lumens: Up to 1600 lm at 3000K CRI95
Light beam: 36° with 20° tilt and 360° rotation
Fixture Input: 20-40V DC Max 350 mA Constant Current
CRI: 90
Trim Color: White-Black Duo
Optics: Reflector Semi frosted glass
Driver Options: 120V AC Triac Dimmable 11W / 15W Selectable – 120V-347V AC 0-10V Dimmable 11W / 15W Selectable
J-Box Wire Volume: Max 5 No 12 AWG or 8 No 14 AWG
Cable Rating: FT6 / CMP Open Plenum
Operating Temp: -40°F (-40°C) to +113°F (+45°C)
Projected Life: 70% Light Output at 50,000 Hours
ID: 2 3/4″
OD: 3″
Height: 3 7/8″
Cut out: 2 5/8″
Certification: c ETL us, FCC, Type IC, Air Tight, Open Plenum, Wet Location IP54
Warranty: Lotus warranties for as long as we manufacture this line + 5 years
About Lotus LED Lights:
Lotus LED Lights is a family-owned and operated business specializing in LED lighting. We design, produce, and distribute to electrical wholesalers slim LED recessed lighting fixtures of high quality and with unique features.
We believe in what we do and support our customers by not discontinuing products as they evolve. The company’s success is rooted in providing a wide variety of high-quality products, innovative designs, and excellent customer service. With 3 stocking warehouses in the USA and 2 in Canada, Lotus LED Lights can ship most orders the same day to deliver the next or 2nd-day ground to 80% of our 4,000+ distributors across North America.
