Lotus LED Lights L3G-RIT-WH-RF50-5C95
L3G-RIT-WH-RF50-5C95 Product Description

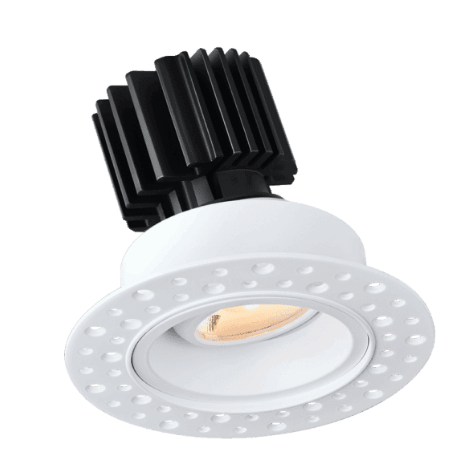

The L3G-RIT-WH-RF50-5C95 is a high-performance 3" gimbal round invisible trim downlight engineered to provide broad, soft, and evenly diffused illumination with a sleek, minimal ceiling profile. Featuring a white trim and a frosted glass reflector optic, this fixture produces a wide 50° beam, making it ideal for general lighting, wall washing, and creating ambient illumination in residential, commercial, and hospitality spaces.
Specifications:
SKU: L3G-RIT-WH-RF50-5C95
UPC: 652659009196
Brand: Lotus LED Lights
Model: L3G-RIT
Trim Color: WH – White
Optics: RF – Reflector with Frosted Glass
Beam Angle: 50°
LED: 5C95 – 5000K, CRI 95
Applications: Task lighting, sloped ceiling up to 20°, wall washing, trimless
Power: 11W / 15W user selectable (with Lotus Tangra drivers)
Lumen Output: Up to 1600 lm at 3000K, CRI 95
Light Beam Adjustment: 20° tilt, 360° swivel
LED Options:
3000K CRI 95 or CRI 98 – 2 step bin
Dim to Warm 3000K to 1800K CRI 95 – 2 step bin
4CCT (22/27/30/40K) Dim to Warm 3500K to 2700K CRI 90 – 3 step bin
Driver Options: 120V AC Triac dimmable 11W / 15W selectable
120–347V AC 0–10V dimmable 11W / 15W selectable
Minimum Triac Dimming: 3% reverse phase cut / 4% forward phase cut
Fixture Input: 20–40V DC max 350 mA constant current
J-Box Wire Volume: Max 5 No.12 AWG or 8 No.14 AWG with FT6 / CMP cable
Operating Temperature: -40°F to 113°F (-40°C to 45°C)
Projected Life: 70% light output at 50,000 hours
Certifications: cETLus, FCC, Type IC, Air Tight, Open Plenum, Wet Location IP54
Lifetime Warranty: 5 years
About Lotus LED Lights:
Lotus LED Lights is a family-owned and operated business specializing in LED lighting. We design, produce, and distribute to electrical wholesalers slim LED recessed lighting fixtures of high quality and with unique features.
We believe in what we do and support our customers by not discontinuing products as they evolve. The company’s success is rooted in providing a wide variety of high-quality products, innovative designs, and excellent customer service. With 3 stocking warehouses in the USA and 2 in Canada, Lotus LED Lights can ship most orders the same day to deliver the next or 2nd-day ground to 80% of our 4,000+ distributors across North America.
