Lotus LED Lights L3G-RIT-WH-LW24-4C90
L3G-RIT-WH-LW24-4C90 Product Description

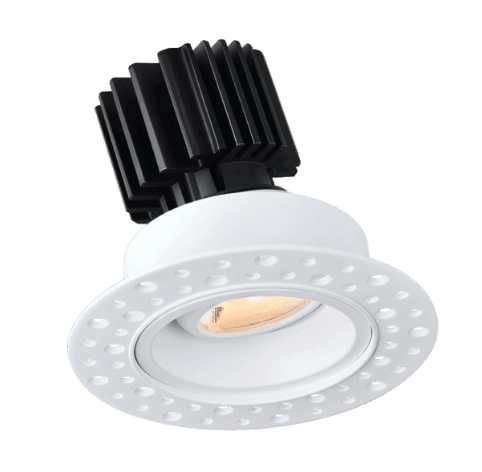

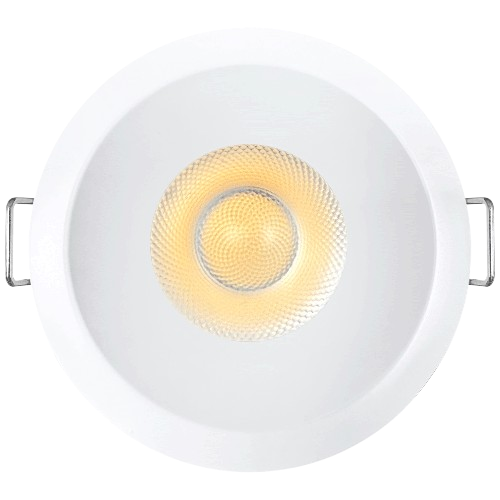

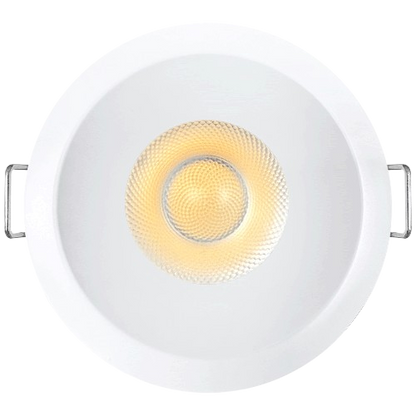

The L3G-RIT-WH-LW24-4C90 is a clean, contemporary trimless gimbal recessed downlight designed for precise and comfortable architectural lighting. Finished with a white invisible trim and white lens optics, it blends seamlessly into ceilings, delivering a refined, minimal appearance with excellent visual comfort.
Featuring a 24° beam angle, this fixture provides controlled, medium-spread illumination ideal for task lighting, accent applications, and general lighting where balanced coverage and reduced glare are required. The integrated static LED light source delivers a crisp 4000K color temperature with high color rendering (CRI 90), making it well suited for environments that require clarity, accuracy, and neutral white light.
Specifications:
SKU: L3G-RIT-WH-LW24-4C90
Brand: Lotus LED Lights
Power: 11W / 15W user selectable with Lotus Tangra drivers
Color Temperature: 4CCT: 2,200 / 2,700 / 3,000 / 4,000K + DTW 3,500K to 2,700K
Lumens: Up to 1600 lm at 3000K CRI95
Light beam: 24° with 20° tilt and 360° rotation
Fixture Input: 20-40V DC Max 350 mA Constant Current
CRI: 90
Trim Color: White
Optics: White Lens
Driver Options: 120V AC Triac Dimmable 11W / 15W Selectable – 120V-347V AC 0-10V Dimmable 11W / 15W Selectable
J-Box Wire Volume: Max 5 No 12 AWG or 8 No 14 AWG
Cable Rating: FT6 / CMP Open Plenum
Operating Temp: -40°F (-40°C) to +113°F (+45°C)
Projected Life: 70% Light Output at 50,000 Hours
ID: 3 1/4″
OD: 4 3/4″
Height: 3 7/8″
Cut out: 3″
Certification: c ETL us, FCC, Type IC, Air Tight, Open Plenum, Wet Location IP54
Warranty: Lotus warranties for as long as we manufacture this line + 5 years
About Lotus LED Lights:
Lotus LED Lights is a family-owned and operated business specializing in LED lighting. We design, produce, and distribute to electrical wholesalers slim LED recessed lighting fixtures of high quality and with unique features.
We believe in what we do and support our customers by not discontinuing products as they evolve. The company’s success is rooted in providing a wide variety of high-quality products, innovative designs, and excellent customer service. With 3 stocking warehouses in the USA and 2 in Canada, Lotus LED Lights can ship most orders the same day to deliver the next or 2nd-day ground to 80% of our 4,000+ distributors across North America.
