Lotus LED Lights KVG-24030-DWJ 24V 30W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet Class 2 Type HL CV

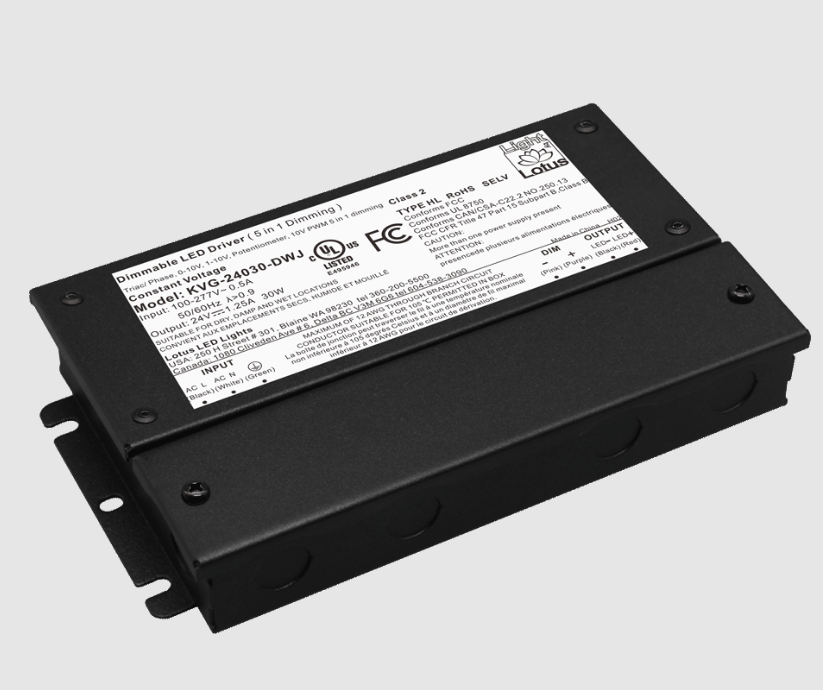

Lotus LED Lights KVG-24030-DWJ

KVG-24030-DWJ Product Description

The KVG-24030-DWJ is a 24V DC 30W constant voltage LED driver with an integrated junction box, engineered for LED tape lighting and 24V DC LED ceiling fixtures. Featuring 5-in-1 dimming compatibility (TRIAC, ELV, MLV, 0-10V, 1-10V, potentiometer, and 10V PWM), it delivers smooth, flicker-free dimming with excellent compatibility across a wide range of control systems. Active Power Factor Correction (PFC) and PWM technology ensure stable, efficient operation, while built-in protection against short circuit, over-voltage, over-temperature, and overload enhances reliability. Designed for dry, damp, and wet locations, the driver includes separate wiring compartments and multiple knockouts for quick and convenient installation.

Specifications:

SKU: KVG-24030-DWJ
Brand: Lotus LED Lights
Product Type: Constant Voltage LED Driver
Applications: LED Tape, 24V DC Ceiling Fixtures
Power: 30W
Input Voltage: 120–277V AC
Output Voltage: 24V DC
Output Current: 1.25A
Driver Type: Constant Voltage Electronic LED Driver
Dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, Potentiometer, 10V PWM (5-in-1)
Minimum Load: 3W
Maximum Load: 30W
THD @ 120V (Without Dimmer): 5%
THD @ 120V (With TRIAC Dimmer): 23%
THD @ 120V (With 0-10V Dimmer): 5%
LED Load THD @ 120V: 15%
THD @ 277V (Without Dimmer): 15%
THD @ 277V (With TRIAC Dimmer): 43%
THD @ 277V (With 0-10V Dimmer): 15%
LED Load THD @ 277V: 15%
Efficiency: Up to 90%
Power Factor: 0.98 with Built-in Power Factor Correction
PWM Frequency: 20kHz
Protection: Short Circuit, Over-Voltage, Over-Temperature, Overload
Approved Location: Dry, Damp & Wet Locations
Wiring Volume: 5 cu. in. per Chamber
Operating Temperature: -40°F to +140°F (-40°C to +60°C)
Net Weight: 2 lbs (0.93 kg)
Certifications: cULus Listed, Class 2, Type HL, FCC Title 47 Class B
Warranty: 5 Years
Dimensions: 6-1/2" × 3-3/4" × 1-3/4"
