Lew Electric PUR20DSD-WT Round Popup White 20a Decora Style Duplex
PUR20DSD-WT
Lew Electric PUR20DSD-WT
PUR20DSD-WT Product Description

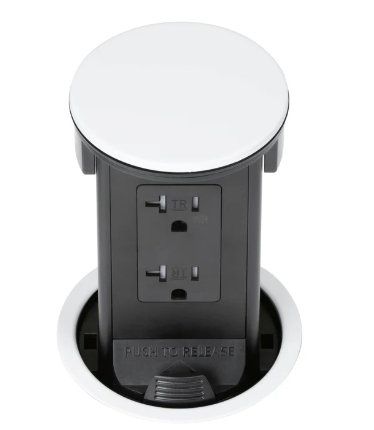

The Lew Electric PUR20DSD-WT [Matte White Metal Cover] countertop pop up power assembly is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the components are hidden under the counter.
When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The receptacle is a 20 Amp rated duplex decora style and has tamper resistant (TR) plugs and is weather resistant.
The PUR is spill proof when in the closed position. The metal cover holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required. All units come with a prewired 5 foot soft wire whip for making the hardwired connection to the supply side simple and fast.
Specifications:
Color: White metal top
Outlet: 20 Amp
340 degree rotation
Tamper resistant (TR) plugs
Meets 2023 NEC code 406.5E for countertops
ETL listed for USA installations, # 4004534
cETL listed for Canada installation, # 4004534
CSA approved for Canada, #C22.2
Conforms to UL 498, Section 147
UL listed receptacle, # E491706
Water protection closed: IP43 rated
Water protection open: 1/2 gallon spill rated outlet
Gasket under bezel to keep water out
Bezel size: 3.98” round
Bezel thickness: .058"
Cutout size: 3 3/4” round
Pop up height: 5 3/8”
Middle top diameter: 3.32"
Depth under 3cm counter: 8.5"
Works in counter thickness: 3/8” - 2 3/16”
Flange width needed under counter: 4.52"
