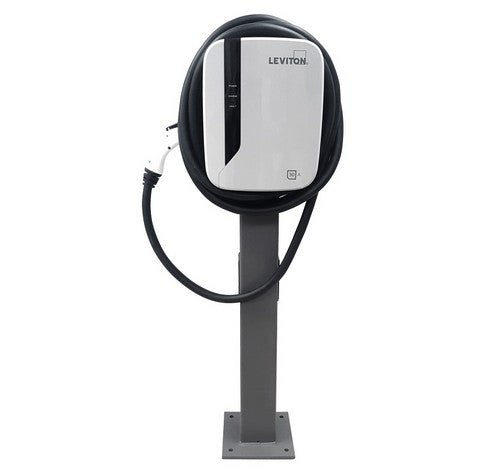

Leviton EVP40-B51 EVPED Evr-Green® 40 Amp EV Charging Station Pedestal System 208~240V AC
2
sold in last
8
hours
EVP40-B51
$1,950.00
customers are viewing this product
PRODUCT DESCRIPTION
The Leviton commitment to help create a sustainable environment is further manifested in our complete line of electric vehicle supply equipment (EVSE) and support services. Whether you are an EV driver, a commercial business, utility company or municipality, there’s an Evr-Green solution for you.
The EVSE pedestal used in conjunction with the Evr-Green e30 & e40 Electric Vehicle Charging Stations provide durable electric vehicle charging for indoor or outdoor uses. The EVSE pedestal system can accommodate up to 2 charging stations enabling charging for two parking spots. The EVSE pedestal is perfect for auto dealerships, car rental agencies, city & township municipalities, health care facilities, educational institutions and any commercial or MDU setting
FEATURES:
Cost-effective solution for EV charging compared to networked charging stations
Single or dual port design that can save on hardware and installation costs as compared to lesser pedestal designs
Pedestal is made in America
Compliant with Americans with Disabilities Act (ADA)
SPECIFICATIONS:
Specifications
Electrical Input EVR40-B25
Amperage 30A 40A
Breaker 40A 50A
Voltage 208VAC – 240VAC
Electrical Output
Output Power 7.2kW (30A@240V) 9.6kW (40A@240V)
Charging Connector SAE J1772™ Charge Connector on
18’ (5.48 m) or 25’ (7.62 m) long cable
Material Specifications
Enclosure Thermoplastic
Charging Cable UL Type EV
Environmental Specifications
Operating Temperature -22°F to +122°F (-30°C to +50°C)
Storage Temperature -40°F to +176°F (-40°C to +80°C)
Operating Humidity < 95% relative humidity, non-condensing
Enclosure NEMA Type 3R
Charge Connector NEMA Type 3S
Standards, Code & Recommended Practice
UL 2251 Standard for Plugs, Receptacles and
Couplers for Electric Vehicles
UL 991 Standard for Tests for Safety-Related Controls
Employing Solid-State Devices
UL 2231-1 Standard for Personnel Protection Systems
for Electric Vehicle (EV) Supply Circuits
UL 2231-2 Standard for Safety for Personnel Protection
Systems for Electric Vehicle (EV) Supply Circuits
UL 1998 Standard for Software in
Programmable Components
UL 2594 Standard for Electric Vehicle Supply Equipment
UL 62 Standard for EV Flexible Cables
SAE J1772™ Surface Vehicle Standard
NEC Article 625 Electric Vehicle Charging System Equipment
FCC Part 15 Federal Communications Commission Part 15
Radio Frequency Devices Class B Residential Use
NOM-ANCE Norma Official Mexicana
The EVSE pedestal used in conjunction with the Evr-Green e30 & e40 Electric Vehicle Charging Stations provide durable electric vehicle charging for indoor or outdoor uses. The EVSE pedestal system can accommodate up to 2 charging stations enabling charging for two parking spots. The EVSE pedestal is perfect for auto dealerships, car rental agencies, city & township municipalities, health care facilities, educational institutions and any commercial or MDU setting
FEATURES:
Cost-effective solution for EV charging compared to networked charging stations
Single or dual port design that can save on hardware and installation costs as compared to lesser pedestal designs
Pedestal is made in America
Compliant with Americans with Disabilities Act (ADA)
SPECIFICATIONS:
Specifications
Electrical Input EVR40-B25
Amperage 30A 40A
Breaker 40A 50A
Voltage 208VAC – 240VAC
Electrical Output
Output Power 7.2kW (30A@240V) 9.6kW (40A@240V)
Charging Connector SAE J1772™ Charge Connector on
18’ (5.48 m) or 25’ (7.62 m) long cable
Material Specifications
Enclosure Thermoplastic
Charging Cable UL Type EV
Environmental Specifications
Operating Temperature -22°F to +122°F (-30°C to +50°C)
Storage Temperature -40°F to +176°F (-40°C to +80°C)
Operating Humidity < 95% relative humidity, non-condensing
Enclosure NEMA Type 3R
Charge Connector NEMA Type 3S
Standards, Code & Recommended Practice
UL 2251 Standard for Plugs, Receptacles and
Couplers for Electric Vehicles
UL 991 Standard for Tests for Safety-Related Controls
Employing Solid-State Devices
UL 2231-1 Standard for Personnel Protection Systems
for Electric Vehicle (EV) Supply Circuits
UL 2231-2 Standard for Safety for Personnel Protection
Systems for Electric Vehicle (EV) Supply Circuits
UL 1998 Standard for Software in
Programmable Components
UL 2594 Standard for Electric Vehicle Supply Equipment
UL 62 Standard for EV Flexible Cables
SAE J1772™ Surface Vehicle Standard
NEC Article 625 Electric Vehicle Charging System Equipment
FCC Part 15 Federal Communications Commission Part 15
Radio Frequency Devices Class B Residential Use
NOM-ANCE Norma Official Mexicana
