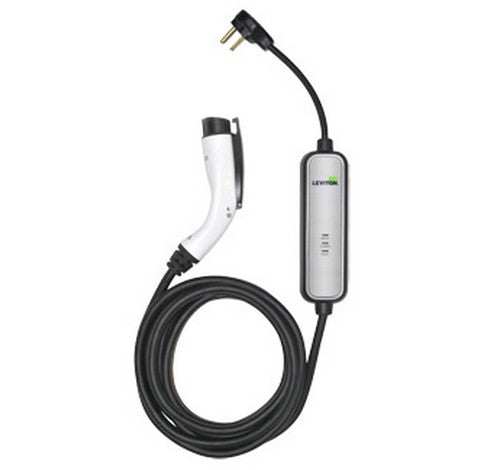

Leviton EVBL2-P12 Evr-Green Mini Charging Station With 12' charging cable, cord-connected (plug-in) 208~240V AC

Introducing the next generation of the Evr-Green® line of Electric Vehicle Supply Equipment (EVSE), the Evr-Green Mini electric vehicle charging station. Our new charging station delivers nearly 5 kW of power and offers a more compact, affordable, easy to use – easy to install solution to electric vehicle charging. The Evr-Green Mini was designed to be the smallest wall-mounted EV charging station available in North America and delivers a maximum of 20 electric vehicle miles per hour.

SPECIFICATIONS:

Electrical
Amperage: 20 A
Breaker: 30 A 2-Pole
Charge Connector: SAEJ1722™ Charge Connecor on 18' Cable
Circuit: 30 A dedicated circuit
Output Power: 4.8 kW (30 A 240 V
Voltage: 208/240 VAC

Environmental
Enclosure: Thermoplastic Polyester
Operating Humidity: 5-90% non-condensing
Operating Temperature: -40 °F to 122 °F
Storage Temperature: -40 °F to 176 °F

Material
Charge Connector Cord: UL Type EV
Enclosure: Thermoplastic Polyester

Standards and Certifications
FCC Part 15: Federal Communications Commission Part 15 Radio Frequency Devices Class B Residential Use
NEC Article 625: Electric Vehicle Charging System Equipment
NOM: NOM-ANCE
SAE J1772™: Surface Vehicle Recommended Practice
UL 1998: Standard for Software in Programmable Components
UL 2231: Standard for Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits
UL 2231-2: Meets Electromagnetic Compatibility (EMC) Requirements
UL 2251: Standard for Plugs, Receptacles and Charge Couplers for Electric Vehicles
UL 2594: Outline of investigation for Electric Vehicle Supply Equipment
UL 62: Standard for Flexible Cords and Cables
UL 991: Standard for Tests for Safety-Related Controls Employing Solid-State Devices
