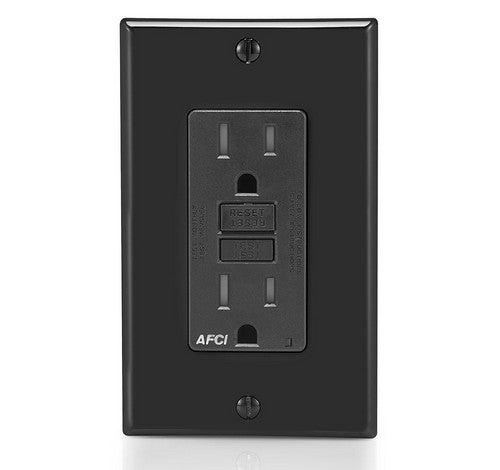

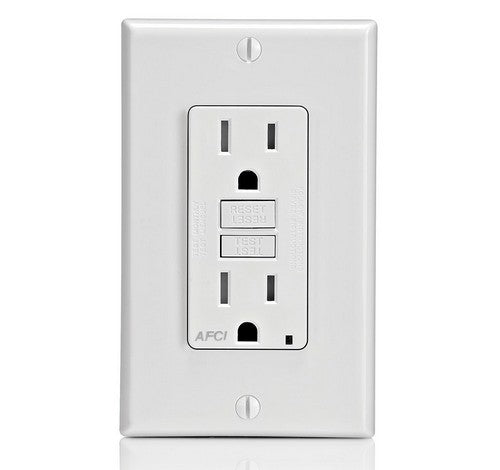

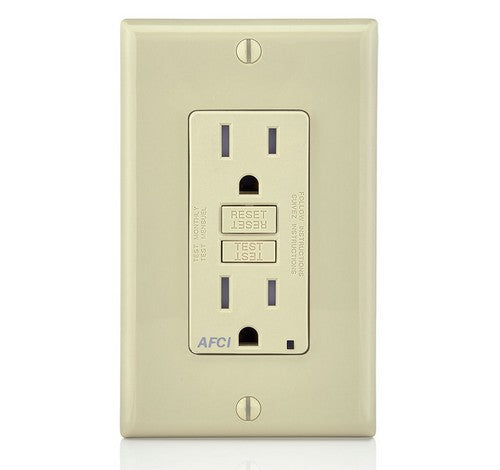

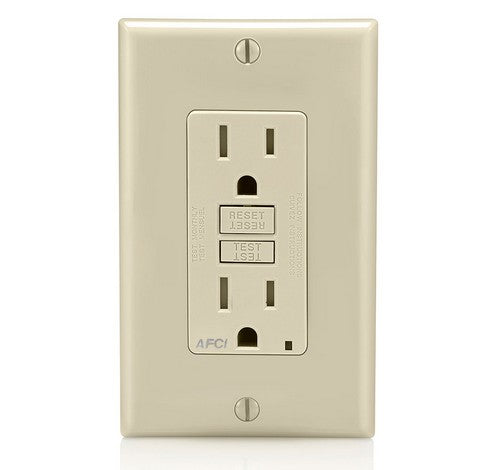

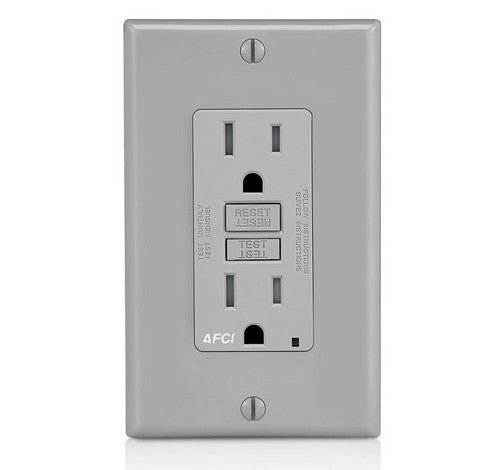

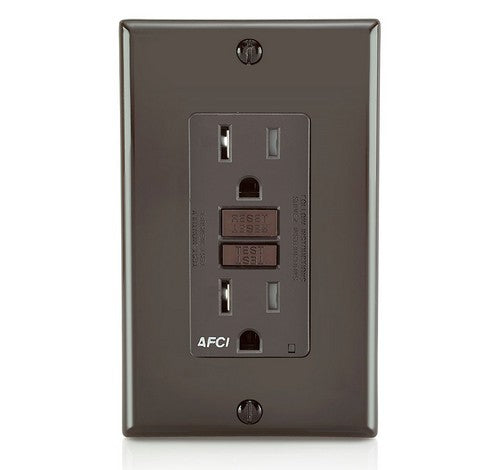

LEVITON AFTR1 Decora SmartlockPro Residential Outlet Branch Circuit Grade Tamper Resistant Receptacle NEMA 5-15R with LED Indicator 15A / 125 VAC
2
sold in last
8
hours
AFTR1-W
$27.50
customers are viewing this product
PRODUCT DESCRIPTION
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet, Monochromatic, back and side wired, nylon wall plate/face plate, screws and self grounding clip included – White
The SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidentally damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.
FEATURES:
Amperage: 15 A
At Rated Voltage: 1 HP
Color: White
Feature: Tamper-Resistant
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Series: AFTR1
Standards and Certifications: UL/CSA
Strap Material: Galvanized Steel
Termination: Back & Side
Type: Duplex Receptacle
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1 HP
Dielectric Voltage: Withstands 1250VAC per UL 1699A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Electrical
Dielectric Voltage: Withstands 1250VAC per UL 1699A
Flammability: Rated V-2 per UL 94
Operating Temperature: -35C to +66C
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental
Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Flammability: Rated V-2 per UL 94
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: w/ Wallplate
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Material
Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: w/ Wallplate
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Mechanical
Amperage: 15 A
Color: White
Feature: Tamper-Resistant
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Product ID: Ratings are permanently marked on device
Series: AFTR1
Standards and Certifications: UL/CSA
Strap Material: Galvanized Steel
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: Yes
CSA Technical Information Letter No. M-02A: Yes
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: Yes
UL1699.A: File E342815
UL498: Yes
The SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidentally damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.
FEATURES:
Amperage: 15 A
At Rated Voltage: 1 HP
Color: White
Feature: Tamper-Resistant
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Series: AFTR1
Standards and Certifications: UL/CSA
Strap Material: Galvanized Steel
Termination: Back & Side
Type: Duplex Receptacle
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1 HP
Dielectric Voltage: Withstands 1250VAC per UL 1699A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Electrical
Dielectric Voltage: Withstands 1250VAC per UL 1699A
Flammability: Rated V-2 per UL 94
Operating Temperature: -35C to +66C
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environmental
Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Flammability: Rated V-2 per UL 94
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: w/ Wallplate
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Material
Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: w/ Wallplate
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Mechanical
Amperage: 15 A
Color: White
Feature: Tamper-Resistant
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Product ID: Ratings are permanently marked on device
Series: AFTR1
Standards and Certifications: UL/CSA
Strap Material: Galvanized Steel
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: Yes
CSA Technical Information Letter No. M-02A: Yes
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: Yes
UL1699.A: File E342815
UL498: Yes
