Leviton 4100C5WLEV
4100C5WLEV Product Description

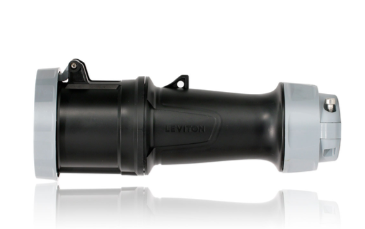

Leviton 100A, 600V. 3-Phase, 3P, 4W, LEV Series Pin & Sleeve Connector, Watertight, Black Finish.
Specifications:
Brand: Leviton
Crush Test: 250 lbs for 1 min after -25 °C for 6 hrs
SCCR: 200kA
IEC Rating: 60309-1, 60309-2
Terminal Screws: 303 Stainless Steel
Cable Clamp Screw Torque: 15 in-lb
Series: LEV Series
Color: Black
NEMA Enclosure Type: 3R, 4X, 6P and 12
Conductor Range: #6 AWG to #1AWG
Wire: 4
Device Type: Connector
Operating Temperature: -35C to +66C
Dielectric Voltage: 3000V for 1 min.
Corrosion Resistance: Salt fog tested
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Max. Voltage: 600V
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
Clock Position: 12 o'clock
Housing: Impact Modified Nylon
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Overload UL20 Test: 50 cycles
RoHS Compliant: FALSE
IP Rating: IP66, IP67, IP68, IP69K
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Contact Carrier: Glass filled Nylon
Assembly Screws: 303 Stainless Steel
RoHS: RoHS compliant components
Pole: 3
UV Resistance: UV stabilized F1 rated housings
Grommet/Gasket: Buna-N
Voltage: 600 VAC
Amperage: 100 A
Screw Terminal Torque: 50 in-lb
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
