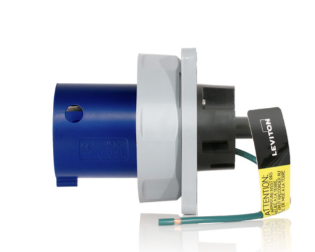

Leviton 4100B9WLEV
4100B9WLEV Product Description
Leviton 100A, 250V 3-Phase, 3P, 4W, LEV Series Pin & Sleeve Inlet, Watertight, Blue Finish.
Specifications:
Brand: Leviton
Device Type: Inlet
Impact: Impact per UL1682, -25C 8 drops at minimum 30 inch height
Warranty: 5-Year Limited
Screw Terminal Torque: 50 in-lb
Assembly Screws: 316 Stainless Steel
Current Interrupting: Certified for current interrupting at full-rated current and voltage
SCCR: 200kA
Max. Voltage: 600V
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
IEC Rating: 60309-1, 60309-2
Crush Test: 302 Stainless Steel
Phase: 3-Phase
Conductor Range: #6 AWG to #1 AWG
Operating Temperature: -35C to +66C
Dielectric Voltage: 3000V for 1 min.
Hardware Head Type: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Horsepower Rating: 10 HP
IP Rating: IP66, IP67, IP68, IP69K
NOM: NOM ANCE standards
Terminal Screws: 303 Stainless Steel
NEMA Enclosure Type: 3R, 4X, 6P and 12
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Contact Carrier: Glass filled Nylon
Cable Clamp Screw Torque: 15 in-lb
Clock Position: 9 o'clock
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Pole: 3
Housing: Impact Modified Nylon
Corrosion Resistance: Salt fog tested
Wire: 4
Voltage: 250 VAC
UV Resistance: UV stabilized F1 rated housings
Amperage: 100 A
RoHS: RoHS compliant components
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
Grommet/Gasket: Buna-N
Series: LEV Series
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
