Leviton 360MF6WLEV
360MF6WLEV Product Description

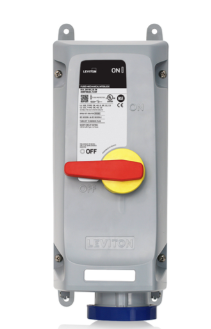

Leviton LEV Series Pin & Sleeve Mechanical Interlock, 60A, 240V 2P, 3W, Watertight, Fused, Blue Finish.
Specifications:
Brand: Leviton
Operating Temperature: -40 °C to 75 °C
Current Interrupting: Certified for current interrupting at full-rated current and voltage
NEMA Rating: 3R, 4X, 12
Dielectric Voltage: 2200V for 1 minute
Wire: 3
Flammability: Rated V-0 per UL 94
Crush Test: 100 lbs
Color: Blue
CE Marking: CE Certification
Contact Material: Nickel-Plated copper alloy
Amperage: 60 A
IP Rating: IP66, IP67, IP68, IP69K
Gasket Aging: 70 °C for 168 hr per UL50E
Housing Material: PBT+PC
Device Type: Fused Mechanical Interlock
Mold Stress Relief: 70 °C for 7 hours without deformation
Horsepower Rating: 7.5 HP
Series: LEV Series
Cold Impact: 5 ft-lb impact at -31 °F for 3 hrs per UL746C
Endurance: 6,000 cycles under load
Housing Screws: 303 Stainless Steel
Country of Origin: Mexico
UV Resistance: UV stabilized F1 rated enclosure
RoHS Compliant: FALSE
Gasket Material: Chloroprene
SCCR: 200kA
Voltage: 240 VAC
Handle Material: PBT+PC with TPE Overmold
Pole: 2
