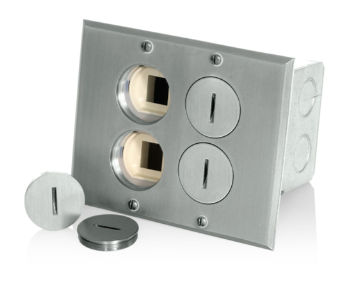

Leviton 35249-TLN
35249-TLN Product Description
For low profile, in-floor receptacle installations, our Floor Boxes are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Specifications:
Brand: Leviton
Clamp Nuts: Zinc-Plated Steel
Body Material: Nylon
Floorplate Material: Solid Brass 0.060 In Thick
Flammability: Rated V-2 per UL 94
Shutter Mechanism: Delrin Acetal
Terminal Screws: Brass 8-32
Operating Temperature: -40 °C to 60 °C
Ground Clips: Brass-Plated
Terminal Accom.: 14-10 AWG
Dielectric Voltage: Withstands 2000V per UL498
Grounding Screw: Brass 8-32
Current Limiting: Full Rated Current
Grounding: Self-Grounding
Face Material: Nylon
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
NEMA: WD-6
Wire: 3
RoHS Compliant: FALSE
Pole: 2
Strap Material: Zinc-Plated Steel
Type: Wood Frame
NOM: 57
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts: Brass Triple-Wipe .031 Thick
Voltage: 125 VAC
At Rated Voltage: 1/2 HP
Termination: Back & Side
Color: Nickel
Amperage: 15 A
Product ID: Ratings are permanently marked on device
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
