Leviton 3435-C
3435-C Product Description

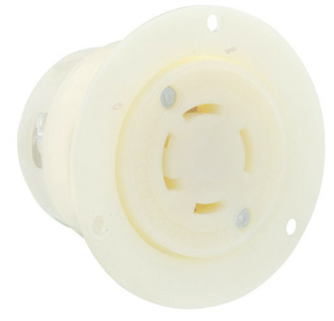

Leviton 30A, 120/208V 3-Phase Y, NEMA Non-NEMA, 4P, 4W, Flanged Outlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Current Limiting: Full Rated Current
Body Material: Nylon
Line Contacts: Brass .035 Thick
Country of Origin: Mexico
Voltage: 120/208 VAC
Dielectric Voltage: Withstands 2000V per UL498
Operating Temperature: -40 °C to 60 °C
Flammability: Rated V-2 per UL 94
Grounding: Non-Grounding
Face Material: Nylon
Phase: 3-Phase WYE
Termination: Back
Screw Terminal Torque: 10-14 in-lbs
Color: White
Environment: Dry
Terminal Accom.: 18-10 AWG
Strap Material: Thermoplastic Nylon
RoHS Compliant: TRUE
NEMA: WD-6
Wire: 4
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product ID: Ratings and NEMA I.D. permanently marked on device
Grounding Screw: Brass 8-32
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
NOM: 57
Terminal Screws: Brass 10-32
Pole: 4
Amperage: 30 A
