Leviton 3335-C
3335-C Product Description

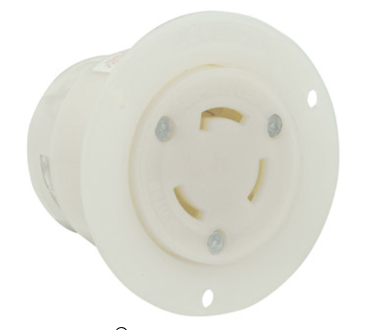

Leviton 330A, 125/250V NEMA Non-NEMA, 3P, 3W, Flanged Inlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Grounding Screw: Brass 8-32
Grounding: Non-Grounding
Voltage: 125/250 VAC
Dielectric Voltage: Withstands 2000V per UL498
RoHS Compliant: TRUE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screws: Brass 10-32
Strap Material: Thermoplastic Nylon
NOM: 57
ANSI: C-73
Environment: Dry
Color: White
Product ID: Ratings and NEMA I.D. permanently marked on device
Amperage: 30 A
Termination: Back
Flammability: Rated V-2 per UL 94
Body Material: Nylon
Brand: Black and White
Terminal Accom.: 18-10 AWG
Operating Temperature: -40 °C to 60 °C
Wire: 3
Screw Terminal Torque: 10-14 in-lbs
NEMA: WD-6
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Face Material: Nylon
Current Limiting: Full Rated Current
Line Contacts: Brass .035 Thick
Pole: 3
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
