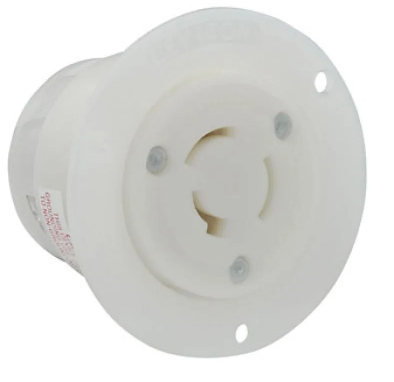

Leviton 3326-C
3326-C Product Description
Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications:
Brand: Leviton
NOM: 57
Wire: 3
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Line Contacts: Brass .035 Thick
Voltage: 125/250 VAC
Body Material: Nylon
Terminal Screws: Brass 10-32
Color: White
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Pole: 3
Screw Terminal Torque: 10-14 in-lbs
Amperage: 20 A
Environment: Dry
NEMA: WD-6
Warranty: Limited Lifetime Warranty Warranty
Grounding Screw: Brass 8-32
Face Material: Nylon
Termination: Back
Strap Material: Thermoplastic Nylon
Grounding: Non-Grounding
Flammability: Rated V-2 per UL 94
Dielectric Voltage: Withstands 2000V per UL498
Current Limiting: Full Rated Current
Operating Temperature: -40 °C to 60 °C
RoHS Compliant: TRUE
