Leviton 330R4WLEV
330R4WLEV Product Description

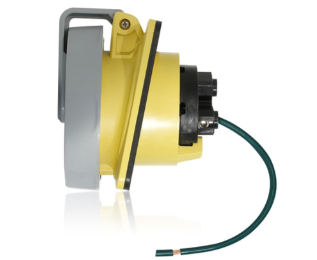

Leviton 30A, 125V 2P, 3W, LEV Series Pin & Sleeve Receptacle, Watertight, Yellow Finish.
Specifications:
Brand: Leviton
Wire: 3
Conductor Range: #12 AWG to #8 AWG
Voltage: 125 VAC
Contact Carrier: Glass filled Nylon
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Pole: 2
Device Type: Receptacle
RoHS: RoHS compliant components
Screw Terminal Torque: 20 in-lb
Housing: PBT
Grommet/Gasket: NBR/Buna N
IEC Rating: 60309-1, 60309-2
Current Interrupting: Certified for current interrupting at full-rated current and voltage
NOM: NOM ANCE standards
Overload UL20 Test: 50 cycles
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Series: LEV Series
Terminal Screws: 303 Stainless Steel
IP Rating: IP66, IP67, IP68, IP69K
Color: Yellow
Warranty: 5-Year Limited
Dielectric Voltage: 3000V for 1 min.
Endurance: 1000 cycles rated V and I load, 1000 cycles no-load (30A)
Corrosion Resistance: Salt fog tested
Clock Position: 4 o'clock
Crush Test: 250 lbs for 1 min after -25 °C for 6 hrs
Amperage: 30 A
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Assembly Screws: 303 Stainless Steel
RoHS Compliant: FALSE
Max. Voltage: 600V
Configuration: North American
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
UV Resistance: UV stabilized F1 rated housings
