Leviton 330C7WLEVA
330C7WLEVA Product Description

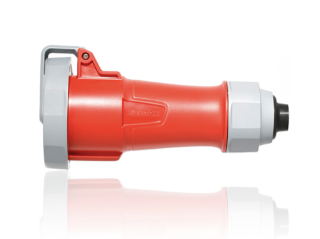

Leviton LEV Series Pin & Sleeve Connector w/ Screwless Clamp Assembly, 30A, 480V 2P, 3W, Watertight, Red Finish.
Specifications:
Brand: Leviton
Screw Terminal Torque: 20 in-lb
Current Interrupting: Certified for current interrupting at full-rated current and voltage
IP Rating: IP66, IP67, IP68, IP69K
UV Resistance: UV stabilized F1 rated housings
NEMA Enclosure Type: 3R, 4X, 6P and 12
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Voltage: 480 VAC
Contact Carrier: Glass filled Nylon
Amperage: 30 A
Pole: 2
RoHS Compliant: FALSE
IEC Rating: 60309-1, 60309-2
Configuration: North American
Series: LEV Series
RoHS: RoHS compliant components
Dielectric Voltage: 3000V for 1 min.
Endurance: 1000 cycles rated V and I load, 1000 cycles no-load (30A)
Housing: Impact Modified Nylon
Device Type: Connector
Corrosion Resistance: Salt fog tested
Terminal Screws: 303 Stainless Steel
SCCR: 200kA
Conductor Range: #12 AWG to #8 AWG
NOM: NOM ANCE standards
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Max. Voltage: 600V
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Clock Position: 7 o'clock
Wire: 3
Overload UL20 Test: 50 cycles
Assembly Screws: 303 Stainless Steel
Grommet/Gasket: NBR/Buna N
Color: Red
