Leviton 27W74
27W74 Product Description

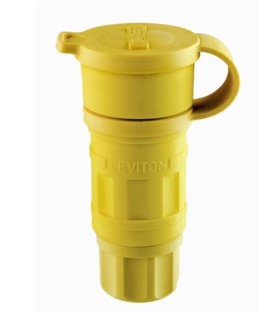

Leviton 20A, 125/250V NEMA L14-20R, 3P, 4W, Locking Connector, Grounding, Wetguard, Yellow Finish.
Specifications:
Brand: Leviton
Body Interior: Nylon
Body Material: EPTR Rubber
Compression Nut, Strain Relief: Nylon
Environment: Wet
Device Type: Locking Connector
Assembly Screws: Stainless Steel 300
IP Rating: IP66, IP67, IP69K
Grounding: Grounding
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Electroless Nickel-coated Brass
Current Limiting: Full Rated Current
Color: Yellow
Dielectric Voltage: Withstands 2000V per UL498
Pole: 3
Bushing: Santoprene TPV
Torque Range: 12-14 in-lbs
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Operating Temperature: -40 °C to 60 °C
Flammability: Rated V-2 per UL 94
Cord Grip Range (in): .375-.875
Warranty: Limited Lifetime Warranty Warranty
Amperage: 20 A
RoHS Compliant: TRUE
NEMA: WD-6
Blades/Contacts: Nickel-Plated Brass
Terminal Accom.: #16 to #10
Wire: 4
Voltage: 125/250 VAC
Wire Module: Nylon
NOM: 57
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
