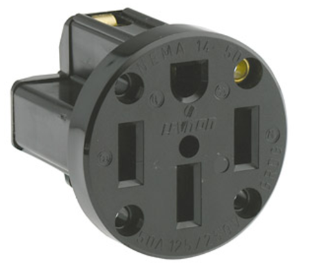

Leviton 279-PM
279-PM Product Description
Built of durable thermoplastic, Leviton Power Receptacles come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
Specifications:
Brand: Leviton
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
NEMA: WD-6
Face Material: Nylon
Warranty: 10-Year Limited
Flammability: Rated V-2 per UL 94
Voltage: 125/250 VAC
Wire: 4
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Product ID: Ratings are permanently marked on device
Dielectric Voltage: Withstands 2000V per UL498
Color: Black
At Rated Voltage: 3 HP
Body Material: Nylon
ANSI: C-73
Grounding: Grounding
Terminal Accom.: #4 - #8AWG
Amperage: 50 A
Operating Temperature: -40 °C to 60 °C
RoHS Compliant: TRUE
Pole: 3
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
