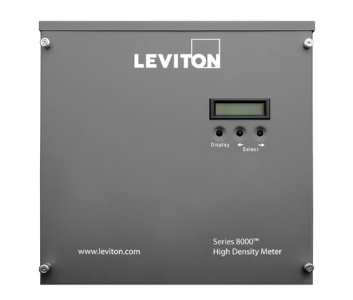

Leviton 277WH-241
277WH-241 Product Description
The VerifEye Series 8000 Multiple Point Submeters are designed to meter multi-tenant office buildings, medium-sized retail, institutional, multi-tenant residential and other high density applications. VerifEye Series 8000 submeters provide twenty-four meter elements that can be configured as any combination of 1 phase, 2 phase or 3 phase meters or monitors.
Specifications:
Brand: Leviton
Altitude: 9843 ft (3000m) maximum
Warranty: 5-Year Limited
Enclosure: Indoor
Meter Configuration: Branch Circuit Monitor
Listings: (EMC): FCC Part 15 Class A, ICES-003, IEC6100-4-5, TUV and UL certified to IEC/EA/UL/CSA - 61010-1 Product Type: Electric Submeter
Operating Temperature: -40 °C to 70 °C
CTs Included: No - Submeter Only
Weight: 14 lbs (6.35kg), 21 lbs (9.52Kg)
Application: Multi-tenant office buildings|Medium-sized retail|Institutional|Multi-tenant residential and other high density applications
Ports: Single 10/100BASE-T Ethernet, RS-232
Product Line: Series 8000
Protocol: ModBus TCP/IP, DHCP, HTTP, PPP, SNTP, FTP, ModBus TCP, ModBus RTU (RS-485), BACnet IP
Operating Humidity: 0 to 90% non-condensing
Dimensions: 13(33cm) Height x 11.8 �(16.9 �) (30.5 cm) Width x 2(5cm) Depth
RoHS Compliant: FALSE
Voltage: 277/480 VAC
