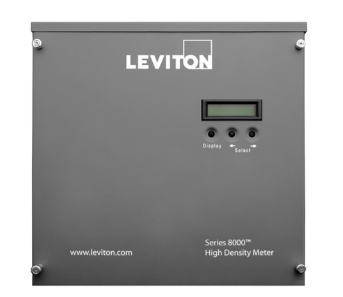

Leviton 277TS-241
277TS-241 Product Description
The VerifEye Series 8000 Multiple Point Submeters are designed to meter multi-tenant office buildings, medium-sized retail, institutional, multi-tenant residential and other high density applications. VerifEye Series 8000 submeters provide twenty-four meter elements that can be configured as any combination of 1 phase, 2 phase or 3 phase meters or monitors.
Specifications:
Brand: Leviton
CTs Included: No - Submeter Only
Warranty: 5-Year Limited
Ports: Single 10/100BASE-T Ethernet, RS-232
Product Line: Series 8000
Operating Humidity: 0 to 90% non-condensing
Product Type: Electric Submeter
Altitude: 9843 ft (3000m) maximum
Meter Configuration: Branch Circuit Monitor
Dimensions: 13(33cm) Height x 11.8 �(16.9 �) (30.5 cm) Width x 2(5cm) Depth
Application: Multi-tenant office buildings|Medium-sized retail|Institutional|Multi-tenant residential and other high density applications
Enclosure: Indoor
Weight: 14 lbs (6.35kg), 21 lbs (9.52Kg)
Operating Temperature: -40 °C to 70 °C
Voltage: 277/480 VAC
RoHS Compliant: FALSE
Protocol: ModBus TCP/IP, DHCP, HTTP, PPP, SNTP, FTP, ModBus TCP, ModBus RTU (RS-485), BACnet IP
