Leviton 2765
2765 Product Description

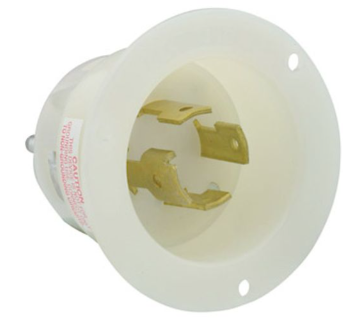

Leviton 30A, 277/480V 3-Phase Y, NEMA L19-30P, 4P, 4W, Flanged Inlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Product ID: Ratings and NEMA I.D. permanently marked on device
Screw Terminal Torque: 10-14 in-lbs
Terminal Accom.: 18-10 AWG
NEMA: WD-6
Color: White
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
NOM: 57
RoHS Compliant: TRUE
Termination: Back
Current Limiting: Full Rated Current
Body Material: Nylon
Strap Material: Thermoplastic Nylon
Warranty: Limited Lifetime Warranty Warranty
Grounding: Non-Grounding
Grounding Screw: Brass 8-32
Operating Temperature: -40 °C to 60 °C
Line Contacts: Solid Brass
Face Material: Nylon
Voltage: 277/480 VAC
Device Type: Locking Flanged Inlet
Flammability: Rated V-2 per UL 94
Dielectric Voltage: Withstands 2000V per UL498
At Rated Voltage: 10 HP
Phase: 3-Phase WYE
Wire: 4
Pole: 4
Amperage: 30 A
Environment: Dry
Terminal Screws: Brass 10-32
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
