Leviton 2763
2763 Product Description

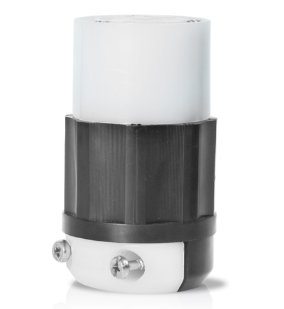

Leviton 30A, 277/480V 3-Phase Y, NEMA L19-30R, 4P, 4W, Locking Connector, Non-Grounding. Black/White.
Specifications:
Brand: Leviton
Terminal Accom.: 18-10 AWG
Environment: Dry
Current Interrupting: Certified for current interrupting at full rated current
Pole: 4
NEMA: WD-6
Brand: Black and White
Back Cover: Thermoplastic
Terminal Screws: Brass
Operating Temperature: -40 °C to 60 °C
RoHS Compliant: TRUE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Clamp Insert: Nylon
Wire Gauge: 14-8 AWG
Torque Range: 10-14 in-lbs
Product ID: Ratings are permanently marked on device
Warranty: Limited Lifetime Warranty Warranty
Cord Range: .595 - 1.150
Wire: 4
At Rated Voltage: 10 HP
Cord-Clamp: Nylon
Amperage: 30 A
Assembly Screws: Steel, Zinc Plated
Color: Black-White
Blades/Contacts: Solid Brass
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Non-Grounding
Device Type: Locking Connector
Voltage: 277/480 VAC
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Flammability: Rated HB or better UL94
Body Material: Impact Modified Nylon
Wire Module: Nylon
Phase: 3-Phase WYE
