Leviton 2755
2755 Product Description

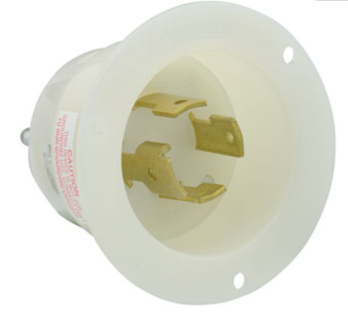

Leviton 30A, 120/208V 3-Phase Y, NEMA L18-30P, 4P, 4W, Flanged Inlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Product ID: Ratings and NEMA I.D. permanently marked on device
NEMA: WD-6
Current Limiting: Full Rated Current
Grounding: Non-Grounding
Dielectric Voltage: Withstands 2000V per UL498
Operating Temperature: -40 °C to 60 °C
Termination: Back
Wire: 4
At Rated Voltage: 3 HP
Strap Material: Thermoplastic Nylon
Environment: Dry
Phase: 3-Phase WYE
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Color: White
Body Material: Nylon
Grounding Screw: Brass 8-32
Flammability: Rated V-2 per UL 94
Line Contacts: Solid Brass
Amperage: 30 A
Face Material: Nylon
Pole: 4
Voltage: 120/208 VAC
Brand: Black and White
Device Type: Locking Flanged Inlet
Screw Terminal Torque: 10-14 in-lbs
Terminal Screws: Brass 10-32
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
