Leviton 2750
2750 Product Description

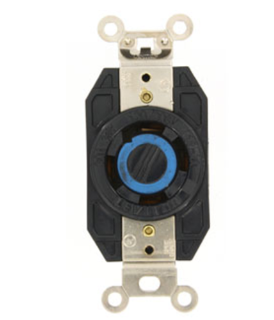

Leviton 30A, 120/208V 3-Phase Y, NEMA L18-30R, 4P, 4W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black.
Specifications:
Brand: Leviton
Strap Material: Nickel-Plated Brass
Terminal ID: Marked on Device
Environment: Corrosive
Pole: 4
Cover Material: Valox 357
Voltage: 120/208 VAC
Brand: V-0-Max
Base Material: Nylon
Terminal Accom.: 14-8 AWG
Terminal Clamps: Nickel-Plated Brass
Termination: Back & Side
Line Contacts: Brass
Screw Terminal Torque: 14-18 in-lbs
Current Limiting: Full Rated Current
Product ID: Ratings and NEMA I.D. permanently marked on device
Amperage: 30 A
RoHS Compliant: FALSE
Flammability: Rated V-0 per UL 94
Face Material: Nylon
Dielectric Voltage: Withstands 2000V per UL498
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Color: Black
Device Type: Locking Receptacle
Grounding Screw: Chromated Brass
Warranty: Limited Lifetime Warranty
Terminal Screws: Chromated Brass
Operating Temperature: -40 °C to 60 °C
Wire: 4
Phase: 3-Phase WYE
NOM: 57
Ground Contacts: Brass
Grounding: Non-Grounding
Body Material: Nylon
